TOP
TOP
- perfect for drives, garages and gardens
- easy to transport and quick to install
- end caps and installation advice make a complete system
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|

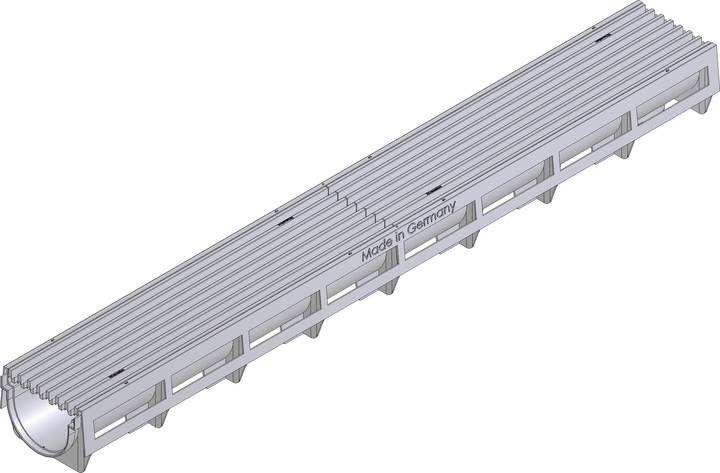

with longitudinal slot grating, made of PE-PP, silver
|
1000 | 134 | 95 | 45 | 637 | 1,5 | 44080 |
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
with slotted grating SW 9, galvanised
|
1000 | 134 | 95 | 45 | 256 | 1,9 | 44000 |
|
with mesh grating MW 8/21, PP copo, black
|
1000 | 134 | 95 | 45 | 250 | 1,5 | 44050 |
|
with mesh grating MW 8/21, PP copo, silver
|
1000 | 134 | - | - | - | 1,4 | 44200 |
|
with paverslot cover made of PPcopo
|
1000 | 134 | 95 | 45 | 118 | 1,5 | 44150 |
Shipment only pallet-wise.
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
TOP -Joining set incl. installation instruction for black channel
|
- | - | - | 0,2 | 44100 |
|
TOP -Joining set incl. installation instruction for silver channel
|
- | - | - | 0,2 | 44140 |
|
Connection set with foul air trap possibility, vertical DN 100 for TOP Channel
|
- | - | - | 0,6 | 44170 |
|
Access cover for paverslot, galvanised, 0,5 m
|
500 | 129 | 58 | 2,0 | 44160 |
