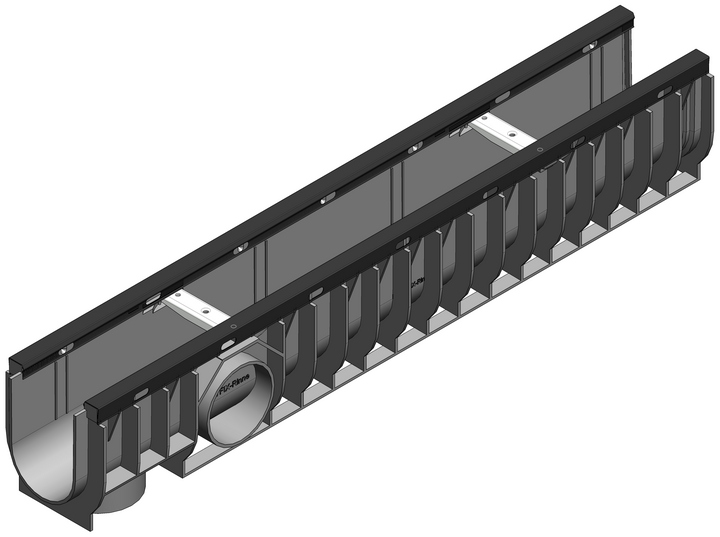

Sportfix channels
Sportfix
- a bespoke system with easy deisgn and high strength for track and field drainage
- water jump, longjump, sand traps and soft kerb comliment the track drainage
- all products are manufactured to the standards set out by the IAAF
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Weight kg | Item No. | |
|
Type 010
|
1000 | 160 | 180 | 142 | 3,1 | 7600 |
|
with turf support
|
1000 | 170 | 220 | 142 | 3,1 | 7630 |
|
With turf support, curved, r=36,5 m
|
1000 | 170 | 220 | 142 | 3,1 | 7640 |
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Weight kg | Item No. | |
|
Super
|
1000 | 160 | 196 | 142 | 6,9 | 7650 |
|
Super with upstand
|
1000 | 160 | 196 | 142 | 7,1 | 7670 |
Gratings
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
straight
|
1000 | 143 | 50 | - | 1,5 | 7560 |
|
Curved (r=36,5 m)
|
1000 | 143 | 50 | - | 1,5 | 7561 |
|
Blank covers, straight
|
1000 | 143 | 50 | - | 1,5 | 7563 |
|
Blank covers, curved (r=36,5 m)
|
1000 | 143 | 50 | - | 1,5 | 7564 |
Trash boxes
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
Type 0
|
500 | 160 | 415 | 4,9 | 7750 |
|
Type 0 with turf support
|
500 | 170 | 455 | 5,1 | 7770 |
|
Access cover
|
500 | 167 | 40 | 2,8 | 7785 |
