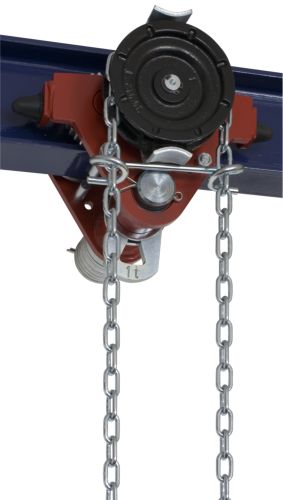

Single-beam trolley Z420

Innovation of type Z410 - single-beam trolley is equipped with safety shock absorbers

Detailed description:

Use:
As manually controlled trolleys for suspending BRANO hoists, or hoists of other brands of the corresponding loading capacity
Serves to move loads within the area of the crane track
- as part of the service hoists for installation and maintenance work in technological facilities of all types
- can also be used in environments with a risk of explosion (NEXP symbol)

Properties:
- simple construction, trolley adapts easily to the width of the crane track
- simple operation
- minimum maintenance demands

The single-beam trolley is intended for travelling along a horizontal crane track.
Can travel along profiles with a slanted flange (rolled " I " profiles), and also along profiles with a straight flange (profily typu " IPE, HEA, HEB, HEM ")
The trolley is manufactured as standard for a basic lift height of 3m. Lift heights from 3m to 12m are available.


Type

Lifting
capacity
(t)

Main dimensions (mm)

Beam
(I, IPE, HEA, HEB, HEM)

a

h

L

v

d1

r

m

n

b

R

Z 420-A

1

245

100

178

209

55

 87

52 – 80

99 – 126

50 – 113

1000

Z 420-B

245

100

286

209

55

87

52 – 134

99 – 180

50-220
(IPE, HEA, HEB)
50-143
( I )

1000

Z 420R-A

245

100

178

177

55

87

52 – 80

-

50 – 113

1000

Z 420R-B

245

100

286

177

55

87

52– 134

-

50-220
(IPE, HEA, HEB)
50-143
( I )

1000

Z 420-A

1,6

350

121,5

212

269

100

 140

80 – 91

168 – 175

58 - 113

1700

Z 420-B

350

121,5

324

269

100

140

80 – 145

168 – 230

58 - 226

1700

Z 420-A

3,2

435

134

239

309

133

 170

86 – 97

178 – 189

106 – 125

2500

Z 420-B

435

134

340

309

133

170

86 – 146

178 – 238

106 – 226

2500

Z 420-A

5

505

149

275

391

148

 218

101 – 116

199 – 214

113 – 137

2800

Z 420-B

505

149

364

391

148

218

101 – 162

199 – 260

113 – 220

2800

Z 420

7,5

685

248

415

432,5

196

 300

150 – 186

294 – 330

125 – 185

5000

Z 420

10

765

278

448

503,5

228

 328

160 – 193

306 – 339

125 – 185

9000

b - range of flange width of a girder
R - minimal curvature radius of trolley track

Z420-A,B/1t

Z420/1t

Z420R-A,B/1t

Z420R/1t

Z420-A,B/1,6t
Z420/1,6t

Type

Lifting
capacity
(t)

Operating force for travel **
(N)

Travel
speed *
(m/min)

Weight
(kg)

Z 420-A

1

250

4,8

8,6

Z 420-B

250

4,8

10

Z 420R-A

-

-

6

Z 420R-B

-

-

6,8

Z 420-A

1,6

150

2,25

25,7

Z 420-B

150

2,25

26,7

Z 420-A

3,2

280

2,3

34,2

Z 420-B

280

2,3

35,7

Z 420-A

5

350

1,8

53

Z 420-B

350

1,8

54,5

Z 420

7,5

500

5,97

124,2

Z 420

10

500

7,3

179,5

* Calculated on presumption of unwinding 30 m of hand chain per minute.
** At trolleys with lifting capacities 3,2 – 10t it is necessary when loading with loads approaching nominal lifting capacity to ensure the operation by two persons





Single-beam trolley Z410

This type is not more produced - replaced with typ Z420

Detailed description:

Use:
As manually controlled trolleys for suspending BRANO hoists, or hoists of other brands of the corresponding loading capacity
Serves to move loads within the area of the crane track
- as part of the service hoists for installation and maintenance work in technological facilities of all types
- can also be used in environments with a risk of explosion (NEXP symbol)
Properties:
- simple construction, trolley adapts easily to the width of the crane track
- simple operation
- minimum maintenance demands

The single-beam trolley is intended for travelling along a horizontal crane track.
Can travel along profiles with a slanted flange (rolled " I " profiles), and also along profiles with a straight flange (profily typu " IPE, HEA, HEB, HEM ")
The trolley is manufactured as standard for a basic lift height of 3m. Lift heights from 3m to 12m are available.



Type

Lifting
capacity
(t)

Main dimensions (mm)

I – beam

a

h

L

v

m

n

b

R

Z 410-A

1

157

100

178

209

52 – 80

99 – 126

50 – 113

1000

Z 410-B

157

100

286

209

52 – 134

99 – 180

50-220
(IPE, HEA, HEB)
50-143
( I )

1000

Z 410R-A

157

100

178

177

52 – 80

-

50 – 113

1000

Z 410R-B

157

100

286

177

52– 134

-

50-220
(IPE, HEA, HEB)
50-143
( I )

1000

Z 410-A

1,6

259

121,5

212

269

80 – 91

168 – 175

58 - 113

1700

Z 410-B

259

121,5

324

269

80 – 145

168 – 230

58 - 226

1700

Z 410-A

3,2

326

134

239

309

86 – 97

178 – 189

106 – 125

2500

Z 410-B

326

134

340

309

86 – 146

178 – 238

106 – 226

2500

Z 410-A

5

398,5

149

275

391

101 – 116

199 – 214

113 – 137

2800

Z 410-B

398,5

149

364

391

101 – 162

199 – 260

113 – 220

2800

Z 410-A

7,5

530

248

415

432,5

150 – 186

294 – 330

125 – 185

5000

Z 410-A

10

615

278

448

503,5

160 – 193

306 – 339

125 – 185

9000
b - range of flange width of a girder
R - minimal curvature radius of trolley track

Z410R

Z410

Type

Lifting
capacity
(t)

Operating force for travel **
(N)

Travel
speed *
(m/min)

Weight
(kg)

Z 410-A

1

250

4,8

8,1

Z 410-B

250

4,8

9,5

Z 410R-A

-

-

5,0

Z 410R-B

-

-

6,3

Z 410-A

1,6

150

2,25

17,5

Z 410-B

150

2,25

18,5

Z 410-A

3,2

280

2,3

32,5

Z 410-B

280

2,3

34

Z 410-A

5

350

1,8

50,5

Z 410-B

350

1,8

52

Z 410-A

7,5

500

5,97

120

Z 410-A

10

500

7,3

175

* Calculated on presumption of unwinding 30 m of hand chain per minute.
** At trolleys with lifting capacities 3,2 – 10t it is necessary when loading with loads approaching nominal lifting capacity to ensure the operation by two persons
