Rope Winches

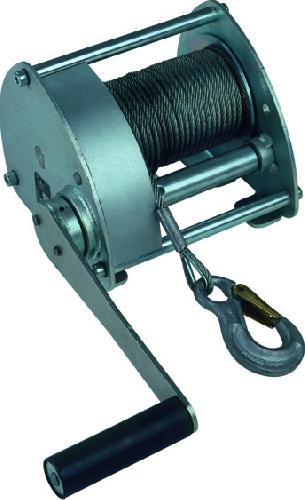

LN Rope winch
Use:
For manual lifting and towing of loads
- as a service hoist for installation and maintenance work in technological facilities of all types
- for loading passenger vehicles or boats onto trailers
- for manipulation activities on small boats (hoisting the sails, etc.)
- can also be used in environments with a risk of explosion (NEXP symbol)
Properties:
- simple, light construction
- simple operation
- anti-corrosion surface treatment by galvanisation
- prepared for installation to a structure
- minimum maintenance demands
Supplied in two versions with or without a rope.
| Type |
Lifting capacity (t) |
Main dimensions (mm) |
Technical parameters |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A |
B |
C |
D |
E |
F* |
G* |
G1 |
L |
R |
Rope (mm) |
Lift (m) |
Gear ratio |
Operating |
Weight |
||
|
LN |
0,5t |
264 |
167 |
344 |
193 |
186 |
144 |
115 |
19 |
5 |
200 |
Ř5 |
10 |
1:8 |
250 |
9 |
|
1t |
373 |
207 |
460 |
240 |
209 |
160 |
160 |
19 |
8 |
300 |
Ř8 |
10 |
1:6 |
320 |
14,5 |
|
|
* hole distances for anchoring of the rope winch |
||||||||||||||||
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
