Rope Tackles

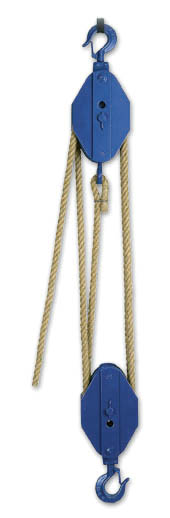

Standard pulley block K10, K11, K12, K15
Use:
Standard pulley blocks serve as mobile tools during installation, repair and other work. They are used for lifting and towing loads in any direction by manually pulling on the rope, but usually using an engine driven windlass.
The K10 –12 type pulley blocks are intended for textile rope, the K15 type for steel rope (the rope are not part of the product)
Properties:
- robust simple construction
- minimum maintenance demands
|
Type |
Lifting |
Main dimensions (mm) |
Technical parameters |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
a |
b |
d |
D |
emin |
Lmin |
Rope |
Pulleys |
Ř of rope |
Operating force F |
Weight (kg) |
||
|
K 10 |
0,5 |
72 |
145 |
30 |
125 |
18,5 |
730 |
textilní |
1 |
25 |
2660 |
14 |
|
K 11 |
1 |
115 |
145 |
36 |
125 |
23,5 |
930 |
2 |
25 |
2760 |
19 |
|
|
2 |
125 |
200 |
50 |
180 |
35,5 |
1215 |
2 |
26 |
5670 |
30 |
||
|
K 12 |
0,3 |
75 |
65 |
30 |
60 |
18,5 |
570 |
3 |
10 |
575 |
3,5 |
|
|
K 15 |
1 |
80 |
200 |
36 |
180 |
23,5 |
1175 |
ocelové |
1 |
12,5 |
5620 |
20 |
|
2 |
100 |
250 |
50 |
230 |
35,5 |
1215 |
1 |
12,5 |
11260 |
43 |
||
|
4 |
115 |
300 |
56 |
280 |
39,5 |
1410 |
1 |
20 |
22400 |
54 |
||
|
6 |
145 |
350 |
63 |
325 |
50 |
1770 |
1 |
20 |
33730 |
104 |
||
