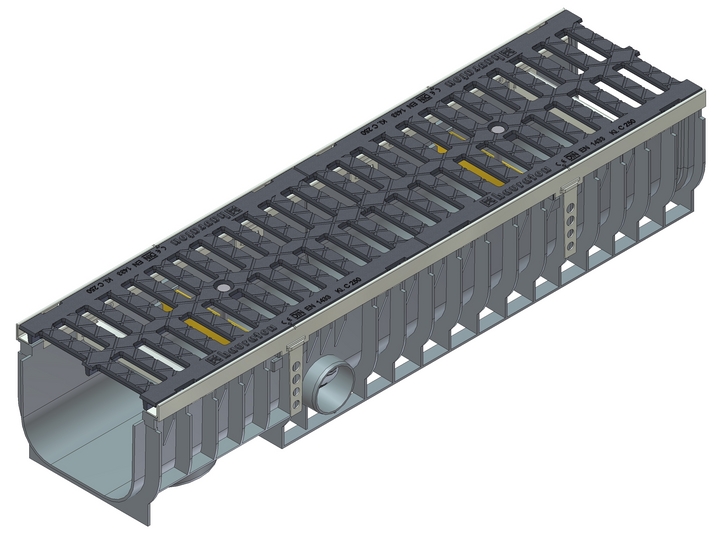

RECYFIX SUPER KS 200

RECYFIX SUPER KS 200

RECYFIX SUPER KS


  • Extremely light and robust
  • With boltless locking system SIDE-LOCK



RECYFIX SUPER KS 200 - Combi article, class C 250
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm² Weight kg Item No.
Type 010 with ductile iron grating, SW 14 mm
 1000 260 203 292 823 18,4 41367
Type 020 with ductile iron grating, SW 14 mm
 1000 260 253 395 823 18,6 41368



RECYFIX SUPER KS 200 - Combi article, class D 400
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm² Weight kg Item No.
Type 010 with ductile iron grating, SW 14 mm
 1000 260 203 292 823 20,4 41375
Type 020 with ductile iron grating, SW 14 mm
 1000 260 253 395 823 20,6 41376



RECYFIX SUPER KS 200 - Combi article, class E 600
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm² Weight kg Item No.
Type 010 with GUGI-ductile iron mesh grating, MW 20x30
 1000 260 203 292 886 26,0 41380
Type 020 with GUGI-ductile iron mesh grating, MW 20x30
 1000 260 253 395 886 26,2 41381



Accessories

RECYFIX SUPER KS 200 - Accessories
  Length mm Width mm Height mm Weight kg Item No. Galvanised Item No. Stainless steel
Trash box with galvanised bucket
 500 260 570 76,0 12052 12552
End cap for type 010, galvanised
 - 260 320 0,8 41382 -
End cap for type 010, galvanised, with horizontal UPVC outlet DN 100
 - 260 320 0,6 41387 -
End cap for type 010, stainless steel
 - 260 320 0,3 41782 -
End cap for type 010, stainless steel, with horizontal UPVC outlet DN 100
 - 260 320 0,6 41787 -
Sealing material Sikaflex TS Fast, 600 ml, tubular bag, black
 - - - 0,6 6890 -
Tubular pistol for Sikaflex TS Fast
 - - - 1,3 6891 -
