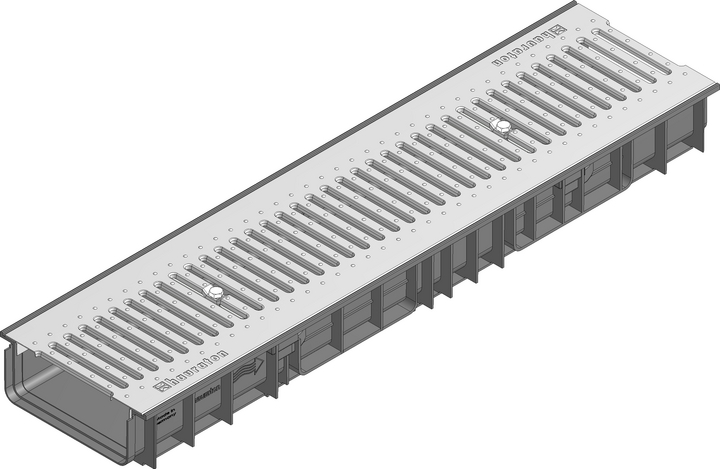

RECYFIX STANDARD 200
RECYFIX STANDARD
- made from recycled polypropylene making it environmentally friendly
- high resistance against frost and road salt
- very light which makes it quick and easy to install
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 100 with slotted grating, locked
|
1000 | 254 | 100 | 150 | 390 | 5,4 | 40647 |
|
Type 010 with slotted grating, locked
|
1000 | 256 | 185 | 290 | 390 | 6,3 | 40648 |
|
Type 020 with slotted grating, locked
|
1000 | 256 | 235 | 366 | 390 | 6,8 | 40649 |
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 100 with mesh grating MW 30/30, galvanised, locked
|
1000 | 254 | 100 | 150 | 1620 | 8,3 | 40635 |
|
Type 100 with mesh grating MW 30/10, galvanised, locked
|
1000 | 254 | 100 | 150 | 1442 | 10,1 | 40636 |
|
Type 010 with mesh grating MW 30/30, galvanised, locked
|
1000 | 256 | 185 | 290 | 1620 | 9,3 | 40672 |
|
Type 020 with mesh grating MW 30/30, galvanised, locked
|
1000 | 256 | 235 | 366 | 1620 | 10,2 | 40676 |
|
Type 010 with mesh grating MW 30/10, galvanised, locked
|
1000 | 256 | 185 | 290 | 1442 | 11,2 | 40685 |
|
Type 020 with mesh grating MW 30/10, galvanised, locked
|
1000 | 256 | 235 | 366 | 1442 | 11,3 | 40686 |
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 100 with ductile iron grating, SW 20.5, black, locked
|
1000 | 254 | 100 | 150 | 822 | 13,9 | 40640 |
|
Type 100 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
1000 | 254 | 100 | 150 | 825 | 14,1 | 40641 |
|
Type 010 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
1000 | 256 | 185 | 290 | 825 | 15,4 | 40665 |
|
Type 020 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
1000 | 256 | 235 | 366 | 825 | 15,8 | 40666 |
|
Type 010 with ductile iron grating 2 x 85/20, black, locked
|
1000 | 256 | 185 | 290 | 822 | 15,0 | 40660 |
|
Type 020 with ductile iron grating 2 x 85/20, black, locked
|
1000 | 256 | 235 | 366 | 822 | 15,4 | 40661 |
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Trash box with galvanised mud bucket and Slotted grating, galvanised, class A 15, locked
|
500 | 256 | 734 | 28,0 | 40658 | - |
|
Trash box with mesh grating MW 30/30, galvanised, cl. B 125, locked
|
500 | 256 | 734 | 27,0 | 40656 | - |
|
Trash box with mesh grating MW 30/10, galvanised, cl. B 125, locked
|
500 | 256 | 734 | 28,6 | 40657 | - |
|
Trash box with GUGI-Ductile iron mesh grating MW 20/30, black, cl. C 250, locked
|
500 | 256 | 734 | 30,8 | 40653 | - |
|
Trash box with ductile iron grating 2 x 85/20, black, class C 250, locked
|
500 | 256 | 734 | 30,6 | 40654 | - |
|
End cap closed, type 100
|
- | - | 80 | 0,1 | 40690 | - |
|
End cap combined made of PE-PP with outlet DN 70, Type 010
|
- | 256 | 185 | 0,2 | 40692 | - |
|
End cap closed, Type 01
|
- | 260 | 275 | 1,1 | 12081 | 12581 |
|
Drilling of connecting holes DN 200
|
- | - | - | 0,1 | 974 | - |
|
Cutting to length of NW 200
|
- | - | - | 0,1 | 992 | - |
|
Sealing material Sikaflex TS Fast, 600 ml, tubular bag, black
|
- | - | - | 0,6 | 6890 | - |
|
Tubular pistol for Sikaflex TS Fast
|
- | - | - | 1,3 | 6891 | - |
