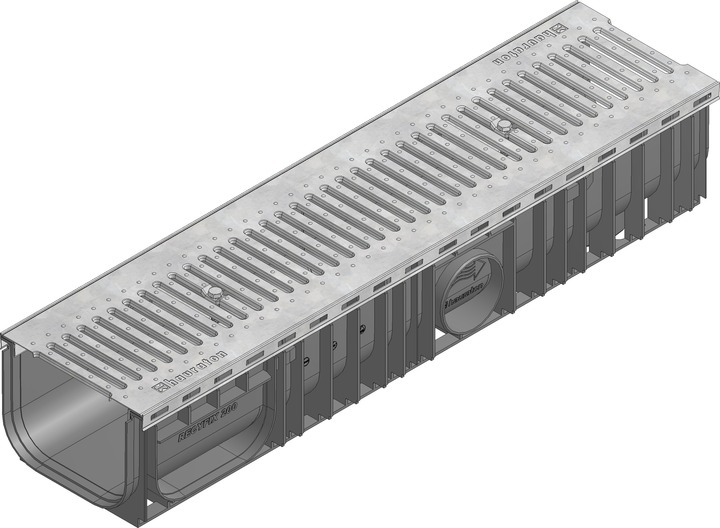

RECYFIX PLUS 200
RECYFIX PLUS
- highly stable
- the steel edge means it is easier to use on many applications including tarmac and also adds to the aesthetics
- an extensive range of channels and gratings up to 300 mm wide gives flexibility in design
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 010 with Slotted grating, galvanised, locked
|
1000 | 247 | 186 | 290 | 390 | 7,7 | 40748 |
|
Type 020 with Slotted grating, galvanised, locked
|
1000 | 248 | 236 | 366 | 390 | 8,2 | 40749 |
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Type 010 with mesh grating MW 30/30, locked
|
1000 | 247 | 186 | 290 | 1620 | 10,3 | 40771 | 42771 |
|
Type 020 with mesh grating MW 30/30, locked
|
1000 | 252 | 236 | 366 | 1620 | 11,5 | 40773 | 42773 |
|
Type 100 with mesh grating MW 30/10, locked
|
1000 | 247 | 100 | 147 | 1442 | 11,1 | 40736 | - |
|
Type 010 with mesh grating MW 30/10, locked
|
1000 | 247 | 186 | 290 | 1442 | 12,2 | 40785 | - |
|
Type 020 with mesh grating MW 30/10, locked
|
1000 | 252 | 236 | 366 | 1442 | 12,7 | 40786 | - |
|
Type 100 with mesh grating MW 30/30, locked
|
1000 | 247 | 100 | 147 | 1620 | 9,3 | 40735 | 42735 |
The quality of the stainless steel material is according CNS 1.4301.
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Type 100 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
1000 | 247 | 100 | 147 | 825 | 15,1 | 40741 | - |
|
Type 010 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
1000 | 247 | 186 | 290 | 825 | 16,6 | 40770 | 42770 |
|
Type 010 with GUGI-Ductile iron mesh grating MW 20/30, KTL, locked
|
1000 | 247 | 186 | 290 | 825 | 16,6 | 40759 | - |
|
Type 020 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
1000 | 252 | 236 | 366 | 825 | 17,1 | 40772 | 42772 |
|
Type 020 with GUGI-Ductile iron mesh grating MW 20/30, KTL, locked
|
1000 | 252 | 236 | 366 | 825 | 17,1 | 40762 | - |
|
Type 100 with ductile iron grating SW 20.5, black, locked
|
1000 | 247 | 100 | 147 | 822 | 14,9 | 40740 | 42740 |
|
Type 010 with Ductile iron grating 2 x 85/20, black, locked
|
1000 | 247 | 186 | 290 | 822 | 16,2 | 40760 | 42760 |
|
Type 020 with Ductile iron grating 2 x 85/20, black, locked
|
1000 | 252 | 236 | 366 | 822 | 16,8 | 40761 | 42761 |
|
Type 010 with Ductile iron grating SW 6 mm, KTL, locked
|
1000 | 247 | 186 | 290 | 656 | 18,4 | 40780 | - |
|
Type 020 with Ductile iron grating SW 6 mm, KTL, locked
|
1000 | 252 | - | - | - | 18,5 | 40782 | - |
The quality of the stainless steel material is according CNS 1.4301.
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Trash box with galvanised mud bucket and Slotted grating, galvanised, class A 15, locked
|
500 | 248 | 735 | 29,0 | 40765 | - |
|
Trash box with mesh grating MW 30/30, galvanised, cl. B 125, locked
|
500 | 248 | 735 | 27,6 | 40756 | 42756 |
|
Trash box with mesh grating MW 30/10, galvanised, cl. B 125, locked
|
500 | 248 | 735 | 29,2 | 40757 | - |
|
Trash box with GUGI-ductile iron grating MW 20/30, black, cl. C 250, locked
|
500 | 248 | 735 | 31,4 | 40753 | 42753 |
|
Trash box with ductile iron grating SW 20, black, cl. C 250, locked
|
500 | 248 | 735 | 31,2 | 40754 | 42754 |
|
Trash box with ductile iron grating SW 6 mm, black, cl. C 250, locked
|
500 | 248 | 735 | 32,2 | 40758 | - |
|
Trash box with GUGI-ductile iron grating MW 20/30, black, cl. D 400, locked
|
500 | 248 | 735 | 22,0 | 40755 | - |
|
Foul air trap, vertical, DN 100
|
- | - | - | 0,6 | 40295 | - |
|
End cap closed, type 100
|
- | - | 80 | 0,1 | 40690 | - |
|
End cap combined made of PE-PP with outlet DN 100, Type 010
|
- | 256 | 200 | 0,2 | 40792 | - |
|
End cap closed, Type 01
|
- | 260 | 275 | 1,1 | 12081 | 12581 |
|
Drilling of connecting holes DN 200
|
- | - | - | 0,1 | 974 | - |
|
Cutting to length of NW 200
|
- | - | - | 0,1 | 992 | - |
|
Sealing material Sikaflex TS Fast, 600 ml, tubular bag, black
|
- | - | - | 0,6 | 6890 | - |
|
Tubular pistol for Sikaflex TS Fast
|
- | - | - | 1,3 | 6891 | - |
The quality of the stainless steel material is according CNS 1.4301.
