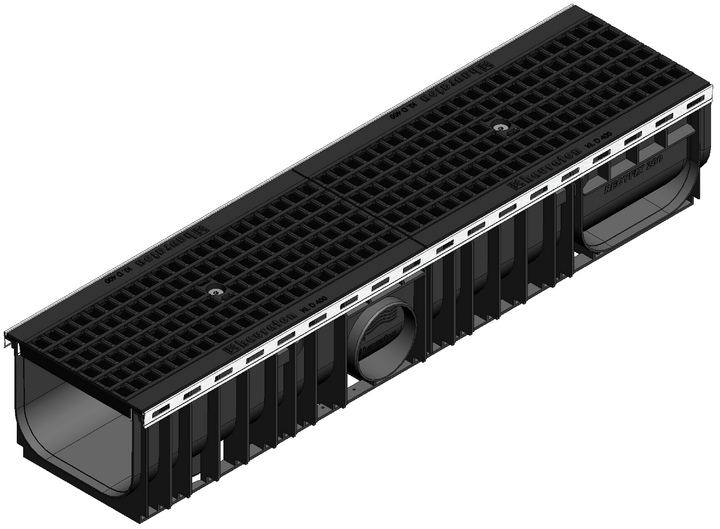

RECYFIX PLUS 200
RECYFIX PLUS
- highly stable
- the steel edge means it is easier to use on many applications including tarmac and also adds to the aesthetics
- an extensive range of channels and gratings up to 300 mm wide gives flexibility in design
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 010 with GUGI-Ductile iron mesh grating MW 20/30, cl. D 400, black, locked
|
1000 | 247 | 186 | 290 | 825 | 18,6 | 40775 |
|
Type 020 with GUGI-Ductile iron mesh grating MW 20/30, cl. D 400, black, locked
|
1000 | 252 | 236 | 366 | 825 | 19,1 | 40777 |
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Trash box with GUGI-ductile iron grating MW 20/30, black, cl. D 400, locked
|
500 | 248 | 735 | 22,0 | 40755 | - |
|
Foul air trap, vertical, DN 100
|
- | - | - | 0,6 | 40295 | - |
|
End cap combined made of PE-PP with outlet DN 70, Type 010
|
- | 256 | 185 | 0,2 | 40692 | - |
|
End cap closed, Type 01
|
- | 260 | 275 | 1,1 | 12081 | 12581 |
|
Drilling of connecting holes DN 200
|
- | - | - | 0,1 | 974 | - |
|
Cutting to length of NW 200
|
- | - | - | 0,1 | 992 | - |
|
Sealing material Sikaflex TS Fast, 600 ml, tubular bag, black
|
- | - | - | 0,6 | 6890 | - |
|
Tubular pistol for Sikaflex TS Fast
|
- | - | - | 1,3 | 6891 | - |
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
