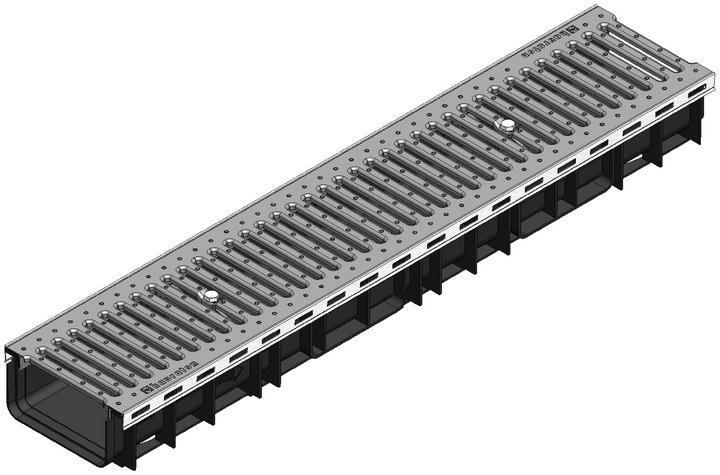

RECYFIX PLUS 150
RECYFIX PLUS
- highly stable
- the steel edge means it is easier to use on many applications including tarmac and also adds to the aesthetics
- an extensive range of channels and gratings up to 300 mm wide gives flexibility in design
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 100 with slotted grating, galvanised, locked
|
1000 | 200 | 100 | 117 | 390 | 5,6 | 41065 |
|
Type 01 with slotted grating, galvanised, locked
|
1000 | 210 | 193 | 225 | 390 | 5,3 | 41064 |
|
Type 0105 with slotted grating, galvanised
|
500 | 210 | 188 | 225 | 390 | 3,4 | 41047 |
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 100 with mesh grating MW 30/30, galvanised, locked
|
1000 | 200 | 100 | 117 | 1081 | 7,6 | 41035 |
|
Type 01 with mesh grating MW 30/30, galvanised, locked
|
1000 | 210 | 193 | 225 | 1081 | 7,8 | 41071 |
|
Type 0105 with mesh grating MW 30/30, galvanised, locked
|
500 | 210 | 193 | 225 | 1081 | 3,9 | 41046 |
|
Type 100 with mesh grating MW 30/10, galvanised, locked
|
1000 | 200 | 100 | 117 | 1098 | 8,8 | 41036 |
|
Tpye 01 with mesh grating MW 30/10, galvanised, locked
|
1000 | 210 | 193 | 225 | 1098 | 8,8 | 41077 |
|
Type 0105 with mesh grating MW 30/10, galvanised, locked
|
500 | 210 | 193 | 225 | 1098 | 2,9 | 41048 |
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Type 01 with GUGI-Ductile iron mesh grating MW 20/30, KTL, locked
|
1000 | 210 | 193 | 225 | 745 | 13,8 | 41074 | - |
|
Type 100 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
1000 | 200 | 100 | 117 | 745 | 12,6 | 41041 | - |
|
Type 01 with GUGI-Ductile iron mesh grating, black, locked
|
1000 | 210 | 193 | 225 | 745 | 13,8 | 41075 | 42675 |
|
Type 0105 with GUGI-Ductile iron mesh grating MW 20/30, black, locked
|
500 | 210 | 193 | 225 | 745 | 6,1 | 41049 | - |
|
Type 01 with ductile iron grating, black, SW 6 mm, locked
|
1000 | 210 | 193 | 225 | - | 12,8 | 41076 | - |
The quality of the stainless steel material is according CNS 1.4301.
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Trash box with galvanised bucket, with ductile iron grating SW 6 mm, black, cl. C 250, locked
|
500 | 210 | 495 | 20,5 | 41058 | - |
|
Trash box with galvanised bucket, with mesh grating MW 30/30, galvanised, class B 125, locked
|
500 | 210 | 495 | 18,6 | 41054 | - |
|
Trash box with slotted grating, cl. A 15, galvanised
|
500 | 210 | 495 | 17,3 | 41055 | - |
|
Trash box with galvanised bucket, with mesh grating MW 30/10, galvanised, class B 125, locked
|
500 | 210 | 495 | 18,6 | 41056 | - |
|
Trash box with galvanised bucket, with GUGI-Ductile iron mesh grating MW 20/30, galvanised, class C250 locked
|
500 | 210 | 495 | 20,7 | 41053 | 42653 |
|
Foul air trap, vertical, DN 100
|
- | - | - | 0,6 | 40295 | - |
|
End cap closed, type 100
|
- | 210 | 100 | 0,1 | 40190 | - |
|
End cap combined made of PE-PP with outlet DN 70/100, Type 01
|
- | 210 | 202 | 0,1 | 40191 | - |
|
Drilling of connecting holes DN 150
|
- | - | - | 0,1 | 973 | - |
|
Cutting to length of NW 150
|
- | - | - | 0,1 | 991 | - |
|
Sealing material Sikaflex TS Fast, 600 ml, tubular bag, black
|
- | - | - | 0,6 | 6890 | - |
|
Tubular pistol for Sikaflex TS Fast
|
- | - | - | 1,3 | 6891 | - |
The quality of the stainless steel material is according CNS 1.4301.
