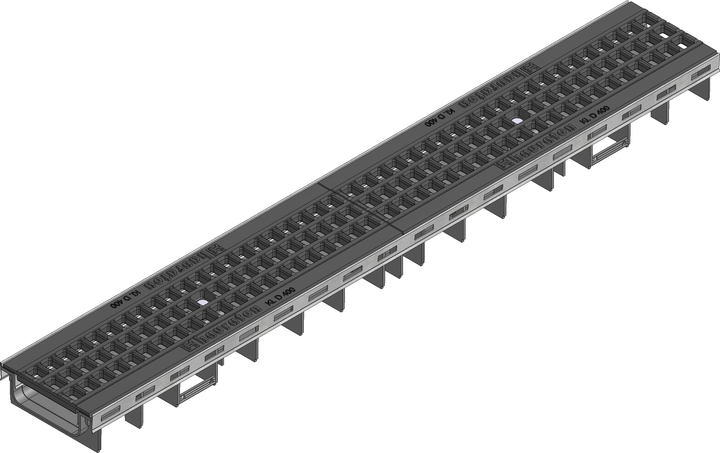

RECYFIX PLUS 100
RECYFIX PLUS
- highly stable
- the steel edge means it is easier to use on many applications including tarmac and also adds to the aesthetics
- an extensive range of channels and gratings up to 300 mm wide gives flexibility in design
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 60 with GUGI-ductile iron mesh grating, black
|
1000 | 147 | 60 | 35 | 449 | 7,4 | 40369 |
|
Type 60 with ductile iron grating heelsafe 6 mm, black
|
1000 | 147 | 60 | 35 | 290 | 9,8 | 40373 |
|
Type 80 with GUGI-ductile iron mesh grating, black
|
1000 | 147 | 80 | 55 | 449 | 7,4 | 40374 |
|
Type 80 with ductile iron grating heelsafe 6 mm, black
|
1000 | 147 | 80 | 55 | 290 | 9,9 | 40378 |
|
Type 01 with GUGI-ductile iron mesh grating, black
|
1000 | 160 | 135 | 92 | 449 | 8,6 | 40370 |
|
Type 01 with ductile iron grating heelsafe 6 mm, black
|
1000 | 160 | 131 | 92 | 290 | 11,1 | 40371 |
|
Type 0105 with GUGI-ductile iron mesh grating, black
|
500 | 160 | 135 | 92 | 449 | 7,4 | 40375 |
|
Type 0105 with ductile iron grating, black
|
500 | 160 | 135 | 92 | 290 | 5,6 | 40376 |
|
Type 010 with GUGI-ductile iron mesh grating, black
|
1000 | 160 | 185 | 142 | 449 | 9,5 | 40390 |
|
Type 010 with ductile iron grating heelsafe 6 mm, black
|
1000 | 160 | - | - | 290 | 11,5 | 40391 |
|
Type 01005 with GUGI-ductile iron mesh grating, black
|
500 | 160 | 185 | 142 | 449 | 7,8 | 40395 |
|
Type 01005 with ductile iron grating, black
|
500 | 160 | 185 | 142 | 290 | 6,0 | 40396 |
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
Trash box with GUGI-ductile iron mesh grating, MW 20/30, cl. D 400
|
500 | 160 | 421 | 6,6 | 40355 |
|
Trash box with mud bucket, with ductile iron grating, cl. D 400, black
|
500 | 160 | 421 | 7,6 | 40393 |
|
Foul air trap, vertical, DN 100
|
- | - | - | 0,6 | 40295 |
|
Foul air trap DN 100, inside
|
- | - | - | 0,2 | 40290 |
|
End cap closed, made of PE-PP, for type 60
|
- | 147 | 60 | 0,1 | 40284 |
|
End cap closed, made of PE-PP, for Type 80
|
- | 147 | 80 | 0,1 | 40291 |
|
End cap combined made of PE-PP with outlet DN 70, type 01
|
- | 160 | 135 | 0,1 | 40281 |
|
End cap combined made of PE-PP with outlet DN 70, type 010
|
- | 149 | 185 | 0,1 | 40283 |
|
Drilling of connecting holes DN 100
|
- | - | - | 0,1 | 972 |
|
Cutting to length of NW 100
|
- | - | - | 0,1 | 990 |
|
Sealing material Sikaflex TS Fast, 600 ml, tubular bag, black
|
- | - | - | 0,6 | 6890 |
|
Tubular pistol for Sikaflex TS Fast
|
- | - | - | 1,3 | 6891 |
