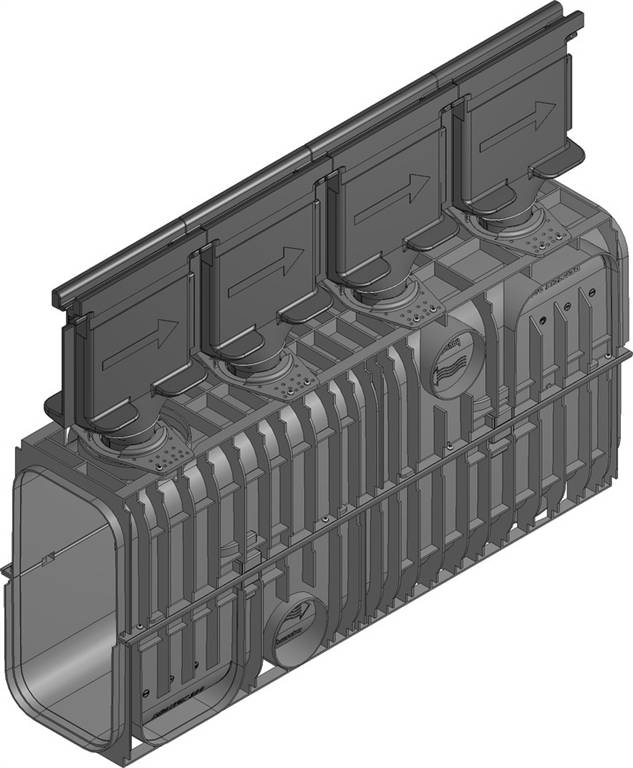

RECYFIX HICAP G 200

RECYFIX HICAP G 200

RECYFIX HICAP G


  • for direct installation of pavement, flagging and asphalt
  • Slotted channel made from ductile iron EN-GJS-500-7
  • Channel body made from PE-PP



RECYFIX HICAP G 200, PE-PP body, slot desing made of spheroidal ductile iron GGG-50, loading capacity F 900
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm²/m Weight kg Item No.
Type 465
 1000 252 764 790 152 38,6 16350



RECYFIX HICAP G 200 - End caps
  Length mm Width mm Height mm Weight kg Item No.
End cap 200
 - 252 465 2,0 13412
End capp 200 with outlet
 - 252 465 2,1 13415



RECYFIX HICAP G 200 - Connection parts
  Length mm Width mm Height mm Weight kg Item No.
Connecting plate 200 - 300
 - - - 2,0 13417
