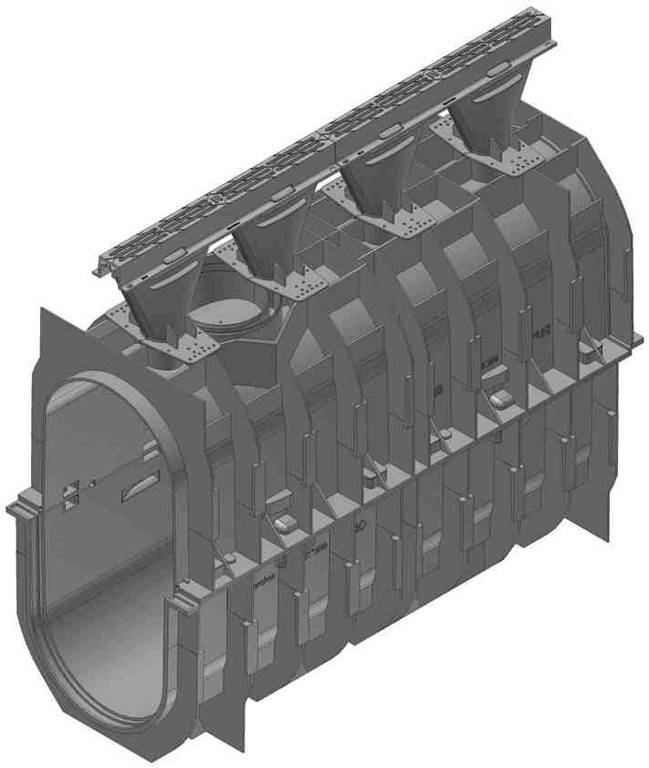

RECYFIX HICAP F 300

RECYFIX HICAP F 300

RECYFIX HICAP F


  • high capacity drainage channel
  • suitable for heavy load areas
  • no expensive crane or machine hours for installation required



RECYFIX HICAP F 300 Type 750, PE-PP, slot design made of spheroidal ductile iron GGG-50, loading capacity F 900*
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm²/m Weight kg Item No.
Type F 750/200, Pedestrian
 1000 420 950 1714 154 24,0 13610
Type F 750/200, Traffic
 1000 420 950 1714 172 23,9 13620
Type F 750/200, Industrial
 1000 420 950 1714 248 23,4 13630
Type F 750/200, Slot 14 mm
 1000 420 950 1714 124 23,4 13625
Type F 750/300, Pedestrian
 1000 420 1050 1714 154 24,2 13660
Type F 750/300, Traffic
 1000 420 1050 1714 172 24,1 13670
Type F 750/300, Industrial
 1000 420 1050 1714 248 26,6 13680
Type F 750/300, Slot 14 mm
 1000 420 1050 1714 124 23,8 13675



RECYFIX HICAP F 300 - End caps
  Length mm Width mm Height mm Weight kg Item No.
End cap 300
 - 420 748 3,0 13612
End cap 300 with outlet
 - 420 748 5,6 13615



RECYFIX HICAP F 300 - Connection parts
  Length mm Width mm Height mm Weight kg Item No.
Connecting plate 300 - 680
 - - - 6,0 13617
