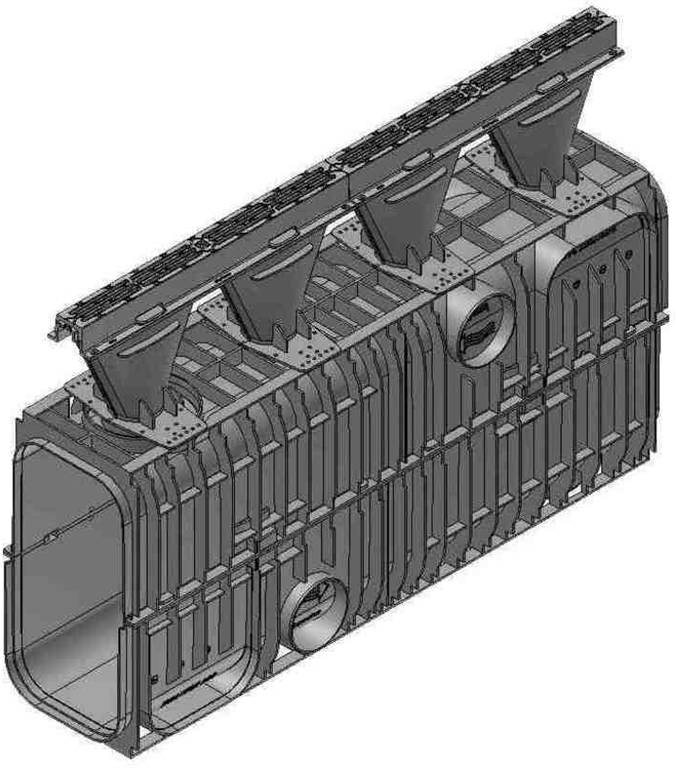

RECYFIX HICAP F 200

RECYFIX HICAP F 200

RECYFIX HICAP F


  • high capacity drainage channel
  • suitable for heavy load areas
  • no expensive crane or machine hours for installation required



RECYFIX HICAP F 200 Type 465, PE-PP, slot design made of spheroidal ductile iron GGG-50, loading capacity F 900
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm²/m Weight kg Item No.
Type F 465/200, Pedestrian
 1000 252 665 790 154 14,0 13410
Type F 465/200, Traffic
 1000 252 665 790 172 13,9 13420
Type F 465/200, Industrial
 1000 252 665 790 248 13,4 13430
Type F 465/200, Slot 14 mm
 1000 252 665 790 124 13,4 13425
Type F 465/300, Pedestrian
 1000 252 765 790 154 14,2 13460
Type F 465/300, Traffic
 1000 252 765 790 172 14,1 13470
Type F 465/300, Industrial
 1000 252 765 790 248 13,6 13480
Type F 465/300, Slot 14 mm
 1000 252 765 790 124 13,8 13475



RECYFIX HICAP F 200 - End caps
  Length mm Width mm Height mm Weight kg Item No.
End cap 200
 - 252 465 2,0 13412
End capp 200 with outlet
 - 252 465 2,1 13415



RECYFIX HICAP F 200 - Connection parts
  Length mm Width mm Height mm Weight kg Item No.
Connecting plate 200 - 300
 - - - 2,0 13417
