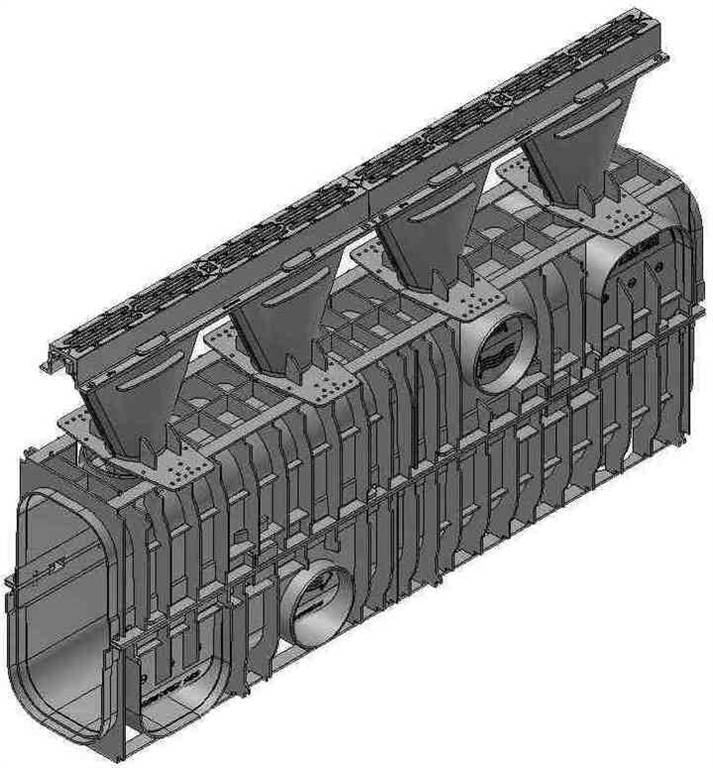

RECYFIX HICAP F 150

RECYFIX HICAP F 150

RECYFIX HICAP F


  • high capacity drainage channel
  • suitable for heavy load areas
  • no expensive crane or machine hours for installation required



RECYFIX HICAP F 150 Type 380, PE-PP, slot design made of spheroidal ductile iron GGG-50, loading capacity F 900
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm²/m Weight kg Item No.
Type F 380/200, Pedestrian
 1000 210 580 460 154 12,5 13210
Type F 380/200, Traffic
 1000 210 580 460 172 12,4 13220
Type F 380/200, Industrial
 1000 210 580 460 248 11,9 13230
Type F 380/200, Slot 14 mm
 1000 210 580 460 124 12,0 13225
Type F 380/300, Pedestrian
 1000 210 680 460 154 12,7 13260
Type F 380/300, Traffic
 1000 210 680 460 172 12,6 13270
Type F 380/300, Industrial
 1000 210 680 460 248 12,1 13280
Type F 380/300, Slot 14 mm
 1000 210 680 460 124 12,3 13275



RECYFIX HICAP F 150 - End caps
  Length mm Width mm Height mm Weight kg Item No.
End cap 150
 - 210 379 2,0 13212
End cap 150 with outlet
 - 210 379 2,4 13215



RECYFIX HICAP F 150 - Connection parts
  Length mm Width mm Height mm Weight kg Item No.
Connecting plate 150 - 200
 - - - 2,2 13217
