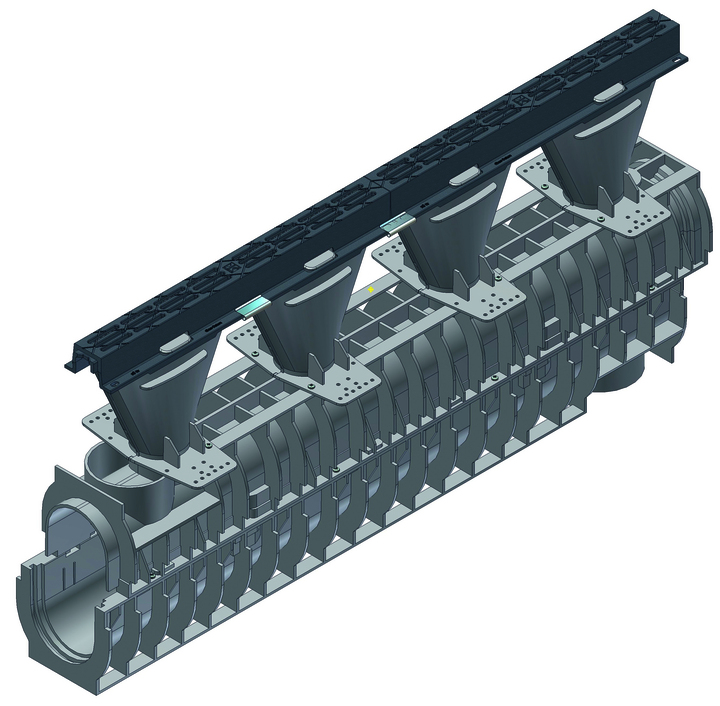

RECYFIX HICAP F 100

RECYFIX HICAP F 100

RECYFIX HICAP F


  • high capacity drainage channel
  • suitable for heavy load areas
  • no expensive crane or machine hours for installation required



RECYFIX HICAP F 100 Type 265, PE-PP, slot design made of spheroidal ductile iron GGG-50, loading capacity F 900
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm²/m Weight kg Item No.
Type F 265/200, Pedestrian
 1000 160 465 184 154 10,8 13000
Type F 265/200, Traffic
 1000 160 465 184 172 10,8 13025
Type F 265/200, Industrial
 1000 160 465 184 248 10,4 13035
Type F 265/200, Slot 14 mm
 1000 160 465 184 124 10,8 13023
Type F 265/300, Pedestrian
 1000 160 565 184 154 11,1 13065
Type F 265/300, Traffic
 1000 160 565 184 172 11,1 13075
Type F 265/300, Industrial
 1000 160 565 184 248 10,8 13085
Type F 265/300, Slot 14 mm
 1000 160 565 184 124 11,1 13073



RECYFIX HICAP F 100 Type 365, PE-PP, slot design made of spheroidal ductile iron GGG-50, loading capacity F 900
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm²/m Weight kg Item No.
Type F 365/200, Pedestrian
 1000 147 565 284 154 13,2 13010
Type F 365/200, Traffic
 1000 147 565 284 172 13,1 13020
Type F 365/200, Industrial
 1000 147 565 284 248 12,6 13030
Type F 365/200, Slot 14 mm
 1000 147 565 284 124 11,5 13028
Type F 365/300, Pedestrian
 1000 147 665 284 154 13,4 13060
Type F 365/300, Traffic
 1000 147 665 284 172 13,3 13070
Type F 365/300, Industrial
 1000 147 665 284 248 12,8 13080
Type F 365/300, Slot 14 mm
 1000 147 665 284 124 11,8 13078



RECYFIX HICAP F 100 - End caps
  Length mm Width mm Height mm Weight kg Item No.
End cap 100, type 365
 - 160 365 1,8 13012
End cap 100 with outlet, type 365
 - 160 365 2,0 13015
End cap type 265
 - 140 250 1,2 13013
End cap with outlet, type 265
 - 140 250 1,2 13018



RECYFIX HICAP F 100 - Connection parts
  Length mm Width mm Height mm Weight kg Item No.
Connecting plate 100 - 150, type 365
 - 180 345 2,0 13017
Connecting plate 100 - 150, type 265
 - 180 245 1,0 13019
