Rack Jacks

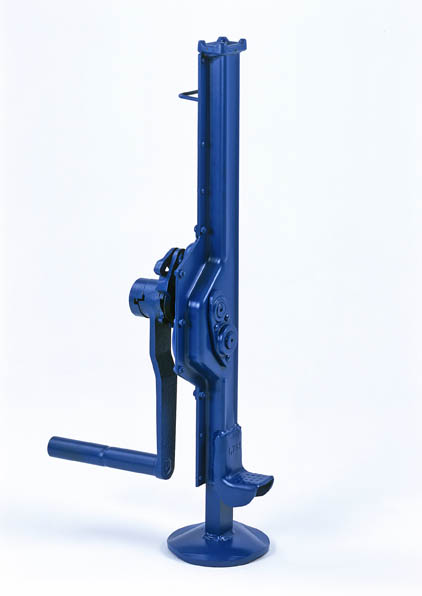

Rack and pinion jack with claw
Use:
- for lifting and manipulating loads of various types
- for installation work of all types, particularly in construction
- may also be used in environments with a risk of explosion (NEXP symbol)
Properties:
- robust, simple and “indestructible” construction
- lifting (expanding) actions using the head or side brace
- reliably holds the load in any position using the lock built into the crank
- acceptable actuating force in the crank
- increased operating comfort in the version with the ratchet handle ( “RK“ symbol)
- low maintenance requirements
- fulfils the requirements of ČSN EN 1494
|
Type |
Lifting capacity (t) |
Operating force on crank |
Main dimensions (mm) |
Weight |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q1 |
Q2 |
a |
b |
b1 |
q |
h min. |
L min. |
r |
Z |
|||
|
15-00 |
2,5 |
1,8 |
380 |
162 |
198 |
200 |
61 |
73 |
735 |
250 |
345 |
15 |
|
15-00-RK |
16 |
|||||||||||
|
15-00 |
5 |
3,5 |
550 |
188 |
235 |
200 |
77 |
83 |
765 |
300 |
360 |
22 |
|
15-00-RK |
23 |
|||||||||||
|
15-01 |
10 |
7 |
540 |
234 |
290 |
200 |
95 |
90 |
770 |
300 |
320 |
38 |
|
15-01-RK |
39 |
|||||||||||
|
15-01 |
16 |
11 |
730 |
280 |
315 |
280 |
92 |
160 |
900 |
400 |
320 |
65 |
|
Z23 |
20 |
14 |
800 |
325 |
330 |
280 |
85 |
150 |
960 |
400 |
300 |
90 |
Příklady pouľití:
Rack and pinion jack with adjustable brace
Use:
- for lifting and manipulating loads of various types
- for installation work of all types particularly in construction
- may also be used in environments with a risk of explosion (NEXP symbol)
Properties:
- robust, simple and “indestructible“ construction
- lifting using the head or the adjustable side brace
- the adjustable side brace enables optimum use of the rack lift
- the option of setting 7 positions on the side brace
- will reliably hold the load in any position using the lock built into the crank
- acceptable actuating force in the crank
- increased comfort for operators in the version with ratchet crank (“RK“ symbol)
- low maintenance demands
- fulfils the requirements of ČSN EN 1494
|
Type |
Lifting capacity (t) |
Operating force on crank |
Main dimensions (mm) |
Weight |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Q1 |
Q2 |
a |
b |
q |
h min. |
L min. |
r |
P |
R |
Z |
|||
|
15-00-VK |
2,5 |
1,8 |
380 |
176 |
248 |
60 |
74,5 |
735 |
250 |
540 |
90 |
345 |
15 |
|
15-00-VK |
5 |
3,5 |
550 |
202 |
274 |
70 |
80 |
765 |
300 |
540 |
90 |
360 |
22 |
|
15-01-VK |
10 |
7 |
540 |
248 |
290 |
80 |
140 |
795 |
300 |
600 |
100 |
350 |
38 |
|
15-00-VK-RK |
2,5 |
1,8 |
380 |
176 |
248 |
60 |
74,5 |
735 |
250 |
540 |
90 |
345 |
16 |
|
15-00-VK-RK |
5 |
3,5 |
550 |
202 |
274 |
70 |
80 |
765 |
300 |
540 |
90 |
360 |
23 |
|
15-01-VK-RK |
10 |
7 |
540 |
248 |
290 |
80 |
140 |
795 |
300 |
600 |
100 |
350 |
39 |
Container rack and pinion jack
2 versions and three rack lengths
Use:
- for installation into machine systems for the purpose of lifting mobile structure components
- examples of use – for lifting container lids and roofs, manipulating water tank sluice-gates, lifting screens or stop-logs in waste water treatment plants, cable car tension stations.
- many other uses for manual lifting and lowering
- can also be used in environments with a risk of explosion (NEXP symbol)
Properties:
- robust, simple and “indestructible“ construction
- the basic version ( “CON“ symbol) enables flexible adaptation of the jack for installation into a structure
- the “wall” version (“CON-W“ symbol) is prepared for installation using built in brackets and apertures at the ends of the rack
- will reliably hold the load in any position using the lock built into the crank
- acceptable actuating force in the crank
|
Type |
Lifting capacity (t) |
Operating force on crank |
Main dimensions (mm) |
Lift |
Weight |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L |
A |
a |
b |
b1 |
c |
d |
d1 |
r |
|||||
|
15-00-CON-W |
2,5 |
380 |
660 |
360 |
320 |
180 |
200 |
80 |
25 |
13 |
250 |
345 |
12,8 |
|
970 |
580 |
15,2 |
|||||||||||
|
1200 |
850 |
17 |
|||||||||||
|
15-00-CON-W |
5 |
550 |
690 |
427 |
350 |
190 |
200 |
80 |
30 |
13 |
300 |
360 |
22,1 |
|
970 |
605 |
25,6 |
|||||||||||
|
1200 |
850 |
28,5 |
|||||||||||
|
15-00-CON-W |
10 |
540 |
690 |
580 |
350 |
225 |
200 |
80 |
30 |
13 |
300 |
320 |
35 |
|
970 |
615 |
40 |
|||||||||||
|
1200 |
850 |
45 |
|||||||||||
|
15-00-CON |
2,5 |
380 |
660 |
655 |
- |
- |
200 |
- |
- |
- |
250 |
345 |
11,4 |
|
970 |
850 |
13,8 |
|||||||||||
|
1200 |
850 |
15,6 |
|||||||||||
|
15-00-CON |
5 |
550 |
690 |
662 |
- |
- |
200 |
- |
- |
- |
300 |
360 |
19 |
|
970 |
850 |
22,5 |
|||||||||||
|
1200 |
850 |
25,4 |
|||||||||||
|
15-00-CON |
10 |
550 |
690 |
670 |
- |
- |
200 |
- |
- |
- |
300 |
320 |
33 |
|
970 |
615 |
38 |
|||||||||||
|
1200 |
850 |
43 |
|||||||||||
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
