CC Pressure Systems - pipes

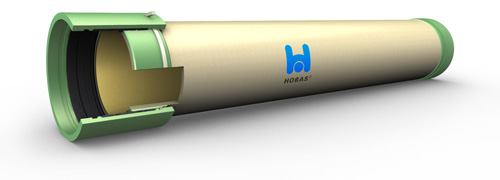

Pressure Pipes
Pressure Pipes made of glass fiber reinforced plastics (GRP) are used as solution of various problems, but mainly for drinking water and hydropower pipelines.
| Physical Properties | |
| Nominal Diameter [DN] | 150 - 3600 mm |
| Nominal Pressure [PN] | 1 - 32 bar |
| Nominal Stiffness [SN] | 2500 - 20000 N/m² |
Restrained Pipes
Restrained Pipes are used for various applications with axial loads.
| Physical Properties | |
| Nominal Diameter [DN] | 200 - 1200 mm |
| Nominal Pressure [PN] | 1 - 10 bar |
| Nominal Stiffness [SN] | 2500 - 20000 N/m² |
Jacking Pipes
Jacking Pipes with flush couplings (GRP or stainless steel) are used for trenchless installations of different applications.
| Physical Properties | |
| Nominal Diameter [DN] | 250 - 3600 mm |
| Nominal Pressure [PN] | 1 - 10 bar |
| Nominal Stiffness [SN] | 32000 - 1000000 N/m² |
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
