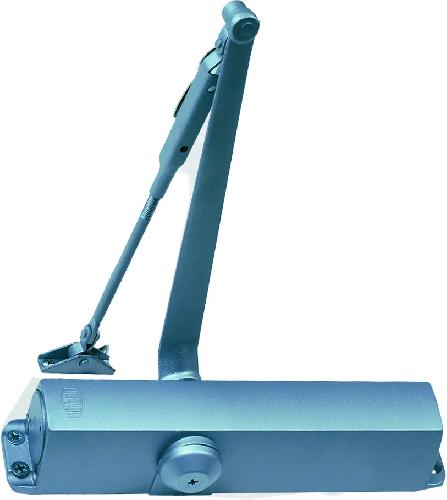

Pinion Door Closers

Instructions for selecting a suitable door closer

I. Basic information:

1. Your doors may swing to the left or right hand. How can you tell?

Left hand swinging doors (LH) open towards the observer and the door hinges are visible to the left.
Right hand swinging doors (RH) open towards the observer and the door hinges are visible on the right.

2. All BRANO door closers can be used for both versions. The installation instructions describe simple manipulation for installation on left and right hand swinging doors. The instructions are attached to every door closer.

3. If you have insufficient space in the direction the door opens, the closer can also be installed “upside down”. All the door closer’s functions are maintained (Comment: does not apply for R12 and R12A types)

4. When installing the closer onto exterior doors we recommend that if possible the door closer is installed on the inside of the door. This protects the closer from the weather, temperature changes, theft, ...

II. Selection of a suitable type of closer:

1. The type of door closer is determined according to the appearance of the closer, the appearance of the doors, the colour of the doors and the options for attaching the closer.

2. We recommend the individual types according to the following table:

III. Selection of the correct size of door closer

1. If you know the weight of the door select the closer according to the following table.

2. If you do not know the weight of the door you can estimate it according to the door width. Again use the following table. The values apply for classic doors (wooden doors with single panes of glass, not fire doors). In this case we recommend that you use door closers for weights one level higher.

P100

Pinion door closer P100 - standard type

New item - P100/14

Detailed description:

• Regulation of the latch resistance passing phase and door closing
• Can be installed on RH and LH swinging doors
• “Reverse“ installation possible
• Suitable for exterior and interior doors
• Available in white, silver, gold and brow

P100L

Pinion door closer P100L - lever with moulding

Detailed description:

Door closer with a lever inside a moulding P100L

• Regulation of the latch resistance passing phase and door closing
• Can be installed on RH and LH swinging doors
• Suitable for exterior and interior doors
• Particularly suitable for areas with low ceilings and with higher requirements for design
• Available in white, silver, gold and brown (other shades possible to order)

D80

Pinion door closer D80

Detailed description:

• Attractive appearance suitable for use in interior and exterior doors
• For use on wooden, metal and plastic doors
• Can be installed on both sides
• Constant closing speed regardless of the time of year
• The version with a stand open arm keeps the door open
• Five sizes in silver



Standard type	With door stopper	Size according to EN 1154	Door weight (kg)	Door width (cm)	A	B	C	D	E	a
D80/12	D80/12 S	2	25-45	90	112	111	232	47	47	5,5
D80/13	D80/13 S	3	40-65	100
D80/14	D80/14 S	4	55-85	105	96	127	268	55	52	5,5
D80/15	D80/15 S	5	80-150	120
D80/16	D80/16 S	6	100-140	150



B87, B88, B89, B94

A simple, cheap alternative of the pinion closer

Detailed description:

• Regulation of the latch resistance passing phase and door closing
• Can be installed on RH and LH swinging doors
• “Reverse“ installation possible
• Suitable for interior and exterior doors
• Available in white and silver



			Angle of opening
			0o - 120o	120o - 180o
Type	Door weight ( kg )	Door width (cm)	A	A	B	C
B87	25 - 45	85	106	62	188	149
B88	40 - 65	95
B89	60 - 85	110	165,1	101,6	208	165
B94	80 - 120	130	165,1	101,6	230,2	165
