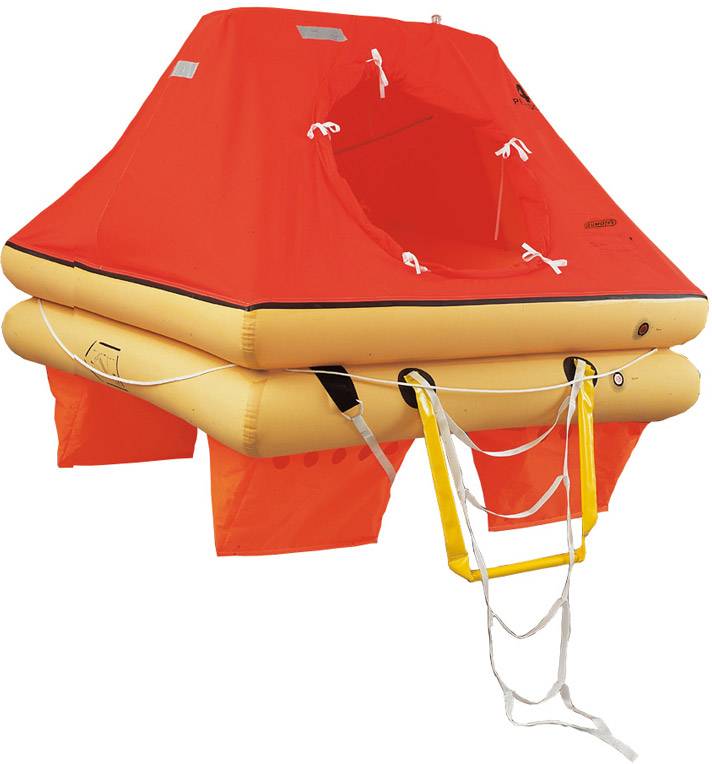

Life rafts
The life rafts are intended for an emergency survival on the sea and are an indispensable equipment of a ship, yacht or a helicopter in case of capsize or accident.
The Gumotex life rafts are offered in several modifications differing in the determined number of persons (available in sizes 4, 6, 8 or 12 persons), in the packaging type (valise or container) and in the equipment. The life rafts are intended for non-commercial voyages and have to be placed on deck in such way to be immediately ready for use, this is already taken into account with their space-saving packaging. At the time of need the inflatable system is activated by pulling the painter line and the life raft will inflate.
The life rafts are equipped with emergency pack for survival of the crew (drinking water, paddles, rescue throwing quoit etc. depending on the appropriate life raft type) and with further useful equipment e.g. boarding ramp, righting strap, safety lifelines, reflective strips and similar. Ballast pockets for stabilization that after being filled with water prevent capsize in heavy seas are provided.
Advantages
- Selection from several sizes depending on the number of rescued persons
- Perfect workmanship
- Well-developed design
- Low weight
- 100% reliability
- Space-saving vacuum-packaging in a valise or container
- Integrated inflatable system
- Activation by pulling the painter line
- Release head DK 94
- Own service station for service inspections
- Various equipment (Sea Line, Ocean Line)
- Long-term manufacturing experience (references Avon, Zodiac, Autoflug and others)
Description of life rafts
- Two independent buoyancy chambers made from a special material
- Automatic inflatable canopy with closable entrance
- Isolating inflatable floor
- Safety reflective strips
- 4 ballast pockets for stabilization to prevent capsize in heavy seas
- External lifelines
- Ladder making easier to enter the raft
- Righting strap
- Pressure relief valves for the supporting frame
- Rainwater collector
- Inside and outside light
- Inflating system with CO2 filling
- The valise with the life raft is filled with foam to reach exact dimensions and to add greater protection against the environment
Sea Line
Life raft with STD standard equipment
Technical data SEA Line
| Packaging | Capacity | Weight (kg) |
Dimensions (cm) |
|
|---|---|---|---|---|
| Sea Line 4 T | valise | 4 | 17 | 60 × 20 × 28 |
| Sea Line 6 T | valise | 6 | 21 | 60 × 17 × 40 |
Life raft equipment
- Bailer, paddles
- Sponge to bail water out of the board
- Rescue throwing quoit
- Repair kit
- Hand pump
- Knife
- Sea anchor
- Signal two-tone whistle
- Outside lighting
- Inside lighting
Ocean Line
Life rafts with equipment according to IOR (valise) or ORC (container)
Technical data Ocean Line - Container
| Packaging | Capacity | Weight (kg) |
Dimensions (cm) |
|
|---|---|---|---|---|
| Ocean Line 4 K | container | 4 | 24,5 | 59 × 38 × 21 |
| Ocean Line 6 K | container | 6 | 26,5 | 59 × 38 × 21 |
Technical data Ocean Line - Valise
| Packaging | Capacity | Weight (kg) |
Dimensions (cm) |
|
|---|---|---|---|---|
| Ocean Line 4 T | valise | 4 | 20 | 60 × 17 × 40 |
| Ocean Line 6 T | valise | 6 | 24 | 60 × 19 × 40 |
| Ocean Line 8 T | valise | 8 | 29 | 78 × 28 × 35 |
Life raft equipment
- Bailer, paddles
- Two sponges to bail water out of the board
- Rescue throwing quoit
- Repair kit
- Hand pump
- Knife
- Sea anchor
- Signal two-tone whistle
- Outside lighting
- Inside lighting
- Drinking water
- Seasick tablets
- Flashlight, extra flashlight batteries and bulb
- Red hand flare
- Red parachute flare (valise only)
- First aid kit (valise only)
- Emergency rations (valise only)
C 12/2004 L
Inflatable life raft designed to be used as rescue device for helicopter crew and persons transported by helicopter, enabling the helicopter crew and transported people to assemble and to stay on the water level for a longer time after an emergency leaving of the helicopter.
Life raft equipment
- Bailer, paddles
- Sponge to bail water out of the board
- Rescue throwing quoit
- Repair kit
- Hand pump
- Knife
- Sea anchor
- Signal two-tone whistle
- Outside lighting
- Inside lighting
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
