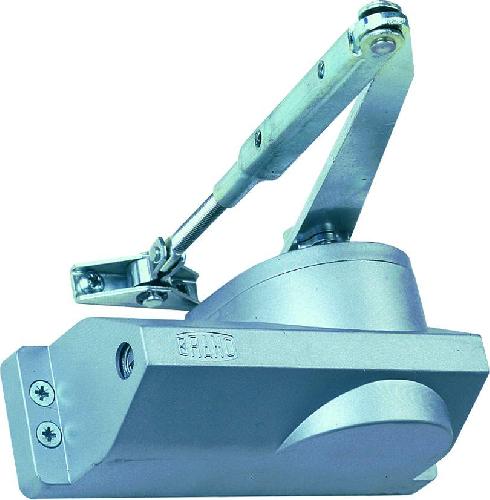

Hydraulic Door Closers
Door closers
Instructions for selecting a suitable door closer
I. Basic information:
1. Your doors may swing to the left or right hand. How can you tell?
Left hand swinging doors (LH) open towards the observer and the door hinges are visible to the left.
Right hand swinging doors (RH) open towards the observer and the door hinges are visible on the right.
2. All door closers can be used for both versions. The installation instructions describe simple manipulation for installation on left and right hand swinging doors. The instructions are attached to every door closer.
3. If you have insufficient space in the direction the door opens, the closer can also be installed “upside down”. All the door closer’s functions are maintained (Comment: does not apply for R12 and R12A types)
4. When installing the closer onto exterior doors we recommend that if possible the door closer is installed on the inside of the door. This protects the closer from the weather, temperature changes, theft, ...
II. Selection of a suitable type of closer:
1. The type of door closer is determined according to the appearance of the closer, the appearance of the doors, the colour of the doors and the options for attaching the closer.
2. We recommend the individual types according to the following table:
|
Closer type |
Door type |
Comment |
|
R12, R12A |
Classic, historical, warehouse and industrial doors, older types of elevator doors |
Easier to open in the initial phase (small children, elderly people) |
|
K204, K214 |
Classic and office doors and doors into office buildings |
Easier to open in the initial phase (small children, elderly people) |
|
P100, D80, Bxx |
Modern doors, plastic doors, modern types of elevator doors, modern buildings |
Supplementary function: so-called pram phase (the door closer has a delay function so as to enable slower persons to pass through (people in wheelchairs, prams,..) |
III. Selection of the correct size of door closer
1. If you know the weight of the door select the closer according to the following table.
2. If you do not know the weight of the door you can estimate it according to the door width. Again use the following table. The values apply for classic doors (wooden doors with single panes of glass, not fire doors). In this case we recommend that you use door closers for weights one level higher.
|
Size according to EN 1154 |
Door weight (kg) |
Door width (cm) |
Size according to EN 1154 |
Door weight (kg) |
Door width (cm) |
Size according to EN 1154 |
Door weight (kg) |
Door width (cm) |
Type |
Door weight (kg) |
Door width (cm) |
|
1 |
Do 25 |
70 |
3 |
40-65 |
100 |
1 |
15-40 |
80 |
B87 |
25-45 |
85 |
|
2 |
20-38 |
80 |
4 |
55-85 |
105 |
2 |
25-45 |
90 |
B88 |
40-65 |
95 |
|
3 |
30-60 |
90 |
5 |
80-150 |
120 |
3 |
40-65 |
100 |
B89 |
60-85 |
110 |
|
4 |
42-70 |
105 |
6 |
100-140 |
150 |
4 | 60-80 | 110 |
B94 |
80-120 |
130 |
|
K204, K214, R12, R12A |
D80 |
P100 |
B87-94 |
||||||||
R12, R12A
Detailed description:
Classic door closer
Can be installed on RH and LH swinging doors
Suitable for exterior and interior doors
Available in silver and gold
| Type | Size according to EN 1154 | Door weight (kg) | Door width (cm) | a | g | b | c | f | h | k | l | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R12/11 | 1 | Max.25 | 70 | 19 | 39 | 70 | 96 | 73 | 100 | 185 | 123 | 2,46 |
| R12A/12 | 2 | 20-38 | 80 | 21 | 45 | 77 | 112 | 77 | 115 | 195 | 133 | 3,07 |
| R12A/13 | 3 | 30-60 | 90 | 28 | 50 | 86 | 122 | 85 | 127 | 225 | 150 | 3,95 |
| R12A/14 | 4 | 42-70 | 105 | 32 | 55 | 98 | 135 | 100 | 143 | 243 | 172 | 5,58 |
K204
Detailed description:
Door shutting regulation
Can be installed on RH and LH swinging doors
”Reverse“ installation possible
Suitable for exterior and interior doors
Available in silver
| Type | Size according to EN 1154 | Door weight (kg) | Door width (cm) | a | b | c | f | g | h | k | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
K204/11 |
1 |
Max.25 |
70 |
16 |
158 |
173 |
79 |
54 |
73 |
185 |
2,39 |
|
K204/12 |
2 |
20-38 |
80 |
16 |
158 |
173 |
79 |
54 |
73 |
185 |
2,45 |
|
K204/13 |
3 |
30-60 |
90 |
16 |
163 |
178 |
85,5 |
61 |
77 |
215 |
2,70 |
|
K204/14 |
4 |
42-70 |
105 |
16 |
163 |
178 |
85,5 |
61 |
77 |
215 |
2,75 |
K214
Detailed description:
Door shutting regulation
Can be installed on RH and LH swinging doors
”Reverse“ installation possible
Suitable for exterior and interior doors
Available in silver, gold and silver gold LX (bright)
| Type | Size according to EN 1154 | Door weight (kg) | Door width (cm) | a | b | c | f | g | h | k | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
K214/11 |
1 |
Max.25 |
70 |
16 |
158 |
169 |
78 |
40 |
73,5 |
185 |
2,34 |
|
K214/12 |
2 |
20-38 |
80 |
16 |
158 |
169 |
78 |
40 |
73,5 |
185 |
2,40 |
|
K214/13 |
3 |
30-60 |
90 |
16 |
163 |
173 |
85,5 |
40 |
76 |
215 |
2,52 |
|
K214/14 |
4 |
42-70 |
105 |
16 |
163 |
173 |
85,5 |
40 |
76 |
215 |
2,59 |
