Hydraulic

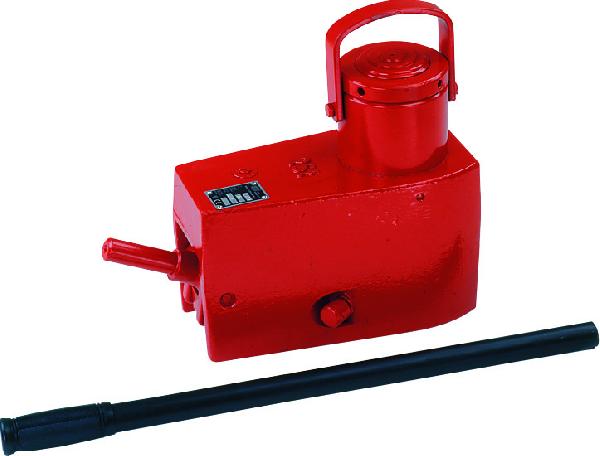

Z320 Hydraulic jack
Use:
Serves as a mobile jack for lifting and manipulating loads of great weight (up to 100t) of various types
- for installation work of all types particularly in construction (bridge building, steel structures, etc.)
- can also be used in environments with a risk of explosion (NEXP symbol)
Properties:
- robust, simple construction
- will reliably hold the load in any position
- minimum actuating force on the hand lever
- minimum maintenance demands
|
Type |
Lifting |
Main dimensions (mm) |
Weight (kg) |
Lift (Z)(mm) |
Capacity of tank (l) |
Operating force (N) |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
a |
b |
d |
D |
L min |
r |
||||||
|
Z320 |
25 |
135 |
271 |
70 |
105 |
280 |
600 |
25 |
145 |
1 |
310 |
|
50 |
180 |
316 |
100 |
145 |
290 |
600 |
48 |
145 |
2 |
310 |
|
|
100 |
250 |
381 |
140 |
210 |
325 |
800 |
95 |
145 |
4 |
310 |
|
Z321 Hydraulic face jack
Use:
Serves as a mobile jack for lifting, expanding and manipulating loads of great weight (up to 200t) of various types
An independent manual pump serves as a pressure head source.
- for installation work of all types particularly in construction (bridge building, steel structures, etc.)
- particularly suitable for use in restricted areas
- can also be used in environments with a risk of explosion (NEXP symbol)
Properties:
- robust, simple construction
- will reliably hold a load in any position
- minimum maintenance demands
|
Type |
Lifting |
Main dimensions (mm) |
Technical parameters |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
L min |
d |
D min |
h |
Lift |
Operating |
Stroke volume |
Connecting |
Weight |
||
|
Z321 |
25 |
283 |
70 |
105 |
40 |
145 |
65 |
0,56 |
M18 x 1,5 |
20 |
|
50 |
290 |
100 |
150 |
37 |
1,4 |
40 |
||||
|
100 |
328 |
140 |
210 |
52 |
2,23 |
87 |
||||
|
200 |
370 |
200 |
300 |
55 |
4,55 |
190 |
||||
HP Hydraulic pump
Use:
Serves as a pressure head source (up to 65 MPa) chiefly for BRANO Z321 type hydraulic face jacks.
Can also be used a pressure head source for other purposes.
Properties:
- simple construction
- protected against overburdening by a safety valve
- minimum maintenance demands
|
Type |
Capacity |
Main dimensions (mm) |
Technical parameters |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|
|
a |
b |
c |
d |
r |
Operating |
Operating force |
Number of outlets |
Weight (kg) |
||
|
HP03L |
3 |
556 |
160 |
194 |
M18x1.5 |
535 |
65 |
370 |
1 |
15 |
|
HP05L |
5 |
726 |
2 |
19 |
||||||
|
HP07L |
7 |
926 |
2 |
21 |
||||||
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
