Gravity Systems - manholes

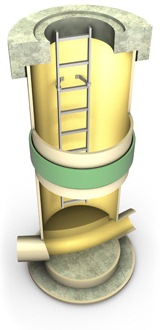

Standard Manhole
Standard Manholes are made of GRP and are from all sides corrosion resistant. They consist of a Pipe with a adequately designed channel.
-
Anti-flotation slab (either as GRP base plate or concrete)
-
Manhole
-
Outlet
-
Berm (depending on national circumstances on site or directly from factory)
-
Coupling on manhole pipe (for multi unit design)
-
Ladder
-
Manhole cover (accessories on request)
| Physical Properties | |
| Nominal Diameter [DN] | 1000 - 3600 mm |
| Outlet | 150 - 2400 mm |
Tangential Manhole
To prevent excessive loads on the laminates and deformations at the joints between the manhole and pipe, some manholes have to be encased in concrete. This safety measure can be dispensed with if installation conditions allow and in agreement with the technical service.
- Main pipe (from DN 800)
- Coupling on main pipe
- Manhole pipe (Standard DN 1000 or DN 1200)
- Berm (sanded)
- Manhole coupling (for multi unit design)
- Ladder
- Manhole cover (accessories on request)
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
