Girder Clamps
ZZ Girder Clamps

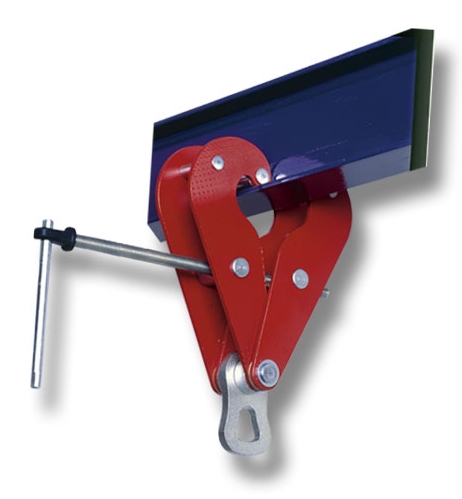

Version with an eye – loading capacity 2t - 10t
Use:
- used as an accessory for manual hoists made by the company, possibly also hoists of other brands
- serves for simple and rapid suspension of manual hoists on beams or posts I (I, IPE, HEB, HEA) or T profile.
- suitable as portable tool during installation, repair or other work.
Properties:
- simple and rapid installation to a structure
- minimum maintenance demands
The version with a cross-beam is made to a loading capacity of 2t, 3.2t and 5t.
The version with an eye is made to a loading capacity of 2t, 3.2t, 5t and 10t.
|
Type |
Lifting |
Main dimensions (mm) |
Weight |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A |
B |
B1 |
C |
D |
E |
F |
G |
H |
||||
|
with cross beam |
with eye |
|||||||||||
|
ZZ |
2 |
360 |
270 |
220 |
220 |
20 |
108 155 |
35 |
57,5 |
61 |
2,9 |
3,1 |
|
3,2 |
415 |
300 |
235 |
285 |
34 |
145 190 |
55 |
81 |
85 |
6,5 |
7 |
|
|
5 |
415 |
300 |
235 |
285 |
38 |
142 187 |
52 |
88 |
93 |
8,4 |
9 |
|
|
10 |
415 |
300 |
235 |
285 |
- |
- |
- |
120 |
109 |
- |
15,5 |
|
|
B - width of I girder flange |
||||||||||||
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
