FW Pressure Systems - pipes

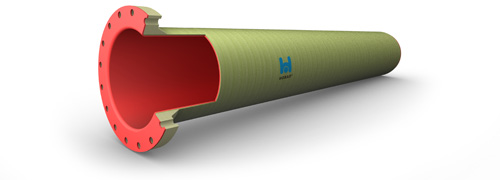

Filament Wound Pipe - TYPE B
Filament Wound (FW) glass fibre reinforced Pipe (GFK/GRP) based on UP (unsaturated polyester resins) and VE (vinylester type resin), in compliance with the requirements in accordance with DIN 16965, part 2.
| Physical Properties | |
| Nominal Diameter [DN] | 25 - 4500 mm |
| Nominal Pressure [PN] | 1 - 40 bar |
| Inner Surface |
Min. 3/4 mm thermoplastic liner made of PVC-U, PVC-C, PP, PE-HD, PVDF |
| Intermediate Layer | Max. 1 mm composite layer glass mat |
| Structure Laminate |
FW roving laminate, combined with layers of glass mat and glass fabric (glass content: 60 +/- 5%) |
| Outer Surface |
One c-glass or synthetic fleece and a weather resistant resin layer max. 0.2 mm |
Filament Wound Pipe - TYPE D
Filament Wound (FW) glass fibre reinforced Pipe (GFK/GRP) based on UP (unsaturated polyester resins) and VE (vinylester type resin), in compliance with the requirements in accordance with DIN 16965, part 4.
| Physical Properties | |
| Nominal Diameter [DN] | 25 - 4500 mm |
| Nominal Pressure [PN] | 1 - 40 bar |
| Inner Surface |
Min. 2.5 mm chemical protection surface (CPS) consisting of one pure resin layer, max. thickness 0.4 mm bonded to c-glass or synthetic fleece, following textile glass mat, glass content 25 - 30% |
| Intermediate Layer | One layer with glas mat |
| Structure Laminate |
FW roving laminate, combined with layers of glass mat and glass fabric (glass content: 60 +/- 5%) |
| Outer Surface |
One c-glass or synthetic fleece and a weather resistant resin layer with max. 0.2 mm |
Filament Wound Pipe - TYPE E
Filament Wound (FW) glass fibre reinforced Pipe (GFK/GRP) based on UP (unsaturated polyester resins) and VE (vinylester type resin), in compliance with the requirements in accordance with DIN 16965, part 5.
| Physical Properties | |
| Nominal Diameter [DN] | 25 - 4500 mm |
| Nominal Pressure [PN] | 1 - 40 bar |
| Inner Surface |
Min. 2.5 mm chemical protection surface (CPS) consisting of one pure resin layer, max. thickness 0.4 mm bonded to c-glass or synthetic fleece, following textile glass mat, glass content 30 +/- 5% |
| Intermediate Layer | No special layer |
| Structure Laminate |
hand lay up laminate from glas mat - up to 6.5 mm. Above 6.5 mm textil glas fabric can be alternately used too. Glas content: 35 +/- 5% |
| Outer Surface |
One c-glass or synthetic fleece and a weather resistant resin layer with max. 0.2 mm |
Filament Wound Pipe - TYPE N
Filament Wound (FW) glass fibre reinforced Pipe (GFK/GRP) based on UP (unsaturated polyester resins) and VE (vinylester type resin), in compliance with the requirements in accordance with DIN 16965, part 2.
| Physical Properties | |
| Nominal Diameter [DN] | 25 - 4500 mm |
| Nominal Pressure [PN] | 1 - 40 bar |
| Inner Surface | Resin rich inner surface (Chemical Protection Layer) thickness max. 2,5 mm. It starts at least with one pure resin layer and C-glass fleece followed by e-glass fabrics (glass content: max 30% and will be increased from inner to outer layer). Load carrying laminate glass content 45 +/- 5% |
| Outer Surface | C-glass or synthetic fleece and a weather-resistant resin layer of max. 0,2 mm |
