FW Pressure Systems - Fittings

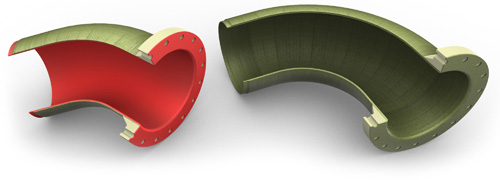

Filament Wound Bends
Filamanet Wound (FW) bends are available in standard angles of 45° and 90°. Other angles are available on request.
| Physical Properties | |
| Nominal Diameter [DN] | 25 - 4500 mm |
| Nominal Pressure [PN] | 1 - 40 bar |
| Pipe TYPE D |
Bends on base of UP- and vinylester-type resin, glass fiber reinforced with laminated ends, bothside formed or wet pressed collars and floating flanges, in compliance to DIN 16966, part 2. |
| Pipe TYPE E |
Bends on base of UP- and vinylester-type resin, glass fiber reinforced with laminated ends, bothside formed or wet pressed collars and floating flanges, in compliance to DIN 16966, part 2. |
| Pipe TYPE N |
Bends on base of UP- and vinylester-type resin, glass fiber reinforced with laminated ends, bothside formed or wet pressed collars and floating flanges, in compliance to DIN 16966, part 2. |
| Pipe TYPE B |
Bends on base of UP- and vinylester-type resin, glass fiber reinforced with thermoplastic liner with laminated ends, bothside formed or wet pressed collars and floating flanges, in compliance to DIN 16966, part 2. |
Filament Wound T-pieces
Filamanet Wound (FW) T-pieces are available for Pipe TYPE D,TYPE E, TYPE B, TYPE N.
| Physical Properties | |
| Nominal Diameter [DN] | 25 - 4500 mm |
| Nominal Pressure [PN] | 1 - 40 bar |
| Pipe TYPE D |
Tee on base of UP- and vinylester-type resin, glass fiber reinforced with laminated ends, bothside formed or wet pressed collars and floating flanges, in compliance to DIN 16966, part 4. |
| Pipe TYPE E |
Tee on base of UP- and vinylester-type resin, glass fiber reinforced with laminated ends, bothside formed or wet pressed collars and floating flanges, in compliance to DIN 16966, part 4. |
| Pipe TYPE N |
Tee on base of UP- and vinylester-type resin, glass fiber reinforced with laminated ends, bothside formed or wet pressed collars and floating flanges, in compliance to DIN 16966, part 4. |
| Pipe TYPE B |
Tee on base of UP- and vinylester-type resin, glass fiber reinforced with thermoplastic liner with laminated ends, formed or wet pressed collars and floating flanges, in compliance to DIN 16966, part 4. |
Filament Wound Reducers
Filamanet Wound (FW) concentric and excentric Reducers are available for Pipe TYPE D,TYPE E, TYPE B, TYPE N.
| Physical Properties | |
| Nominal Diameter [DN] | 25 - 4500 mm |
| Nominal Pressure [PN] | 1 - 40 bar |
| Pipe TYPE D |
Reducer on base of UP- and vinylester-type resin, glass fiber reinforced with laminated ends, formed or wet pressed collars and floating flanges, in compliance to DIN 16966, part 5. |
| Pipe TYPE E |
Reducer on base of UP- and vinylester-type resin, glass fiber reinforced with laminated ends, formed or wet pressed collars and floating flanges, in compliance to DIN 16966, part 5. |
| Pipe TYPE N |
Reducer on base of UP- and vinylester-type resin, glass fiber reinforced with laminated ends, formed or wet pressed collars and floating flanges, in compliance to DIN 16966, part 5. |
| Pipe TYPE B |
Reducer on base of UP- and vinylester-type resin, glass fiber reinforced with thermoplastic liner with laminated ends, formed or wet pressed collars and floating flanges, in compliance to with DIN 16966, part 5. |
Filament Wound Flanges
Filamanet Wound (FW) fixed and blind flanges are available for Pipe TYPE D,TYPE E, TYPE B, TYPE N.
| Physical Properties | |
| Nominal Diameter [DN] | 25 - 4500 mm |
| Nominal Pressure [PN] | 1 - 40 bar |
| Pipe TYPE D |
Fixed Flange on base of UP- and vinylester-type resin, glass fiber reinforced with formed or wet pressed flanges, in compliance to DIN 16966, part 6. |
| Pipe TYPE E |
Fixed Flange on base of UP- and vinylester-type resin, glass fiber reinforced with formed or wet pressed flanges, in compliance to DIN 16966, part 6. |
| Pipe TYPE N |
Fixed Flange on base of UP- and vinylester-type resin, glass fiber reinforced with formed or wet pressed flanges, in compliance to DIN 16966, part 6. |
| Pipe TYPE B |
Fixed Flange on base of UP- and vinylester-type resin, glass fiber reinforced with thermoplastic liner with formed or wet pressed collars and floating flanges, in compliance to DIN 16966, part 6. |
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
