FASERFIX SUPER KS 300

FASERFIX SUPER KS 300
  • the channels are manufactured from a fibre reinforced concrete which makes them extremely strong
  • the SIDE-LOCK grating system gives ease of installation saving time and money
  • there are many different gratings available giving the range enormous flexibility

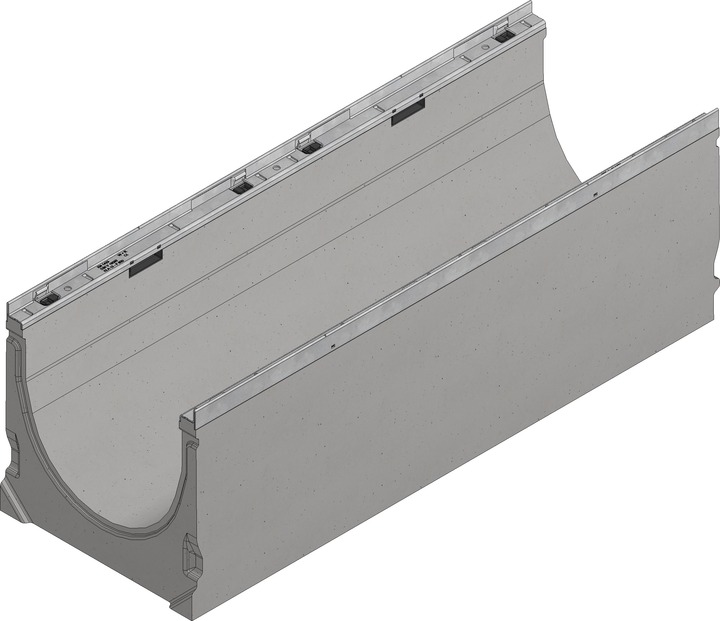

FASERFIX SUPER KS 300 - Channels
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No.
Type 010
 1000 360 340 634 117,0 14040



Gratings

FASERFIX SUPER KS 300 - Gratings, class D 400*
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
Ductile iron grating, SW 20, black
 500 349 20 1325 11,9 14063
Ductile iron grating, SW 20, KTL (minimum order quantity: 400 pieces, delivery time approx. 4 weeks)
 500 349 20 1325 12,0 14263
* Not for use across the carriageway of highways or motorways in moving traffic.


FASERFIX SUPER KS 300 - Gratings, class E 600
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
GUGI-Ductile iron mesh grating, MW 20x30, black
 500 349 20 1196 18,1 14068



Accessories

FASERFIX SUPER KS 300 - Accessories
  Length mm Width mm Height mm Weight kg Item No.
Trash box 2-parts with galvanised mud bucket
 500 360 881 178,5 14054
End cap closed, type 340
 - 360 340 1,9 14085
End cap with UPVC-outlet DN 200
 - 360 340 2,2 14087
Cutting to length of NW 300
 - - - 0,1 993
Mitre cuts NW 300 (price per cut, two cuts necessary)
 - - - 0,1 998
Inserting of PVC union connectors DN 200*
 - - - 0,1 984
Sealing material Masterflex 700 FR Gun Grade, cartridge 450 ml**
 - - - 1,0 19000
Primer Masterflex 700 A SP, capacity 1000 ml
 - - - 1,2 20000
Primer Masterflex 700 FE (steel), capacity 1000 ml
 - - - 1,1 19950
Toolkit for sealing material Masterflex 700 FR Gun Grade
 - - - 3,1 10025
Fixing-system EP, empty pipe in the channel bottom, (2 pieces per metre)
 - - - 0,1 703
Steelbars for fixing system EP (2 pieces per metre)
 - - - 0,1 704
Installation advise FASERFIX SUPER channel 300
 - - - 2,3 136242

* We can additionally insert SML- or PE-HD outlets on appointment
** Consumption for channel type 340: approx. 150 ml per joint.
The quality of the stainless steel material is according CNS 1.4301.
