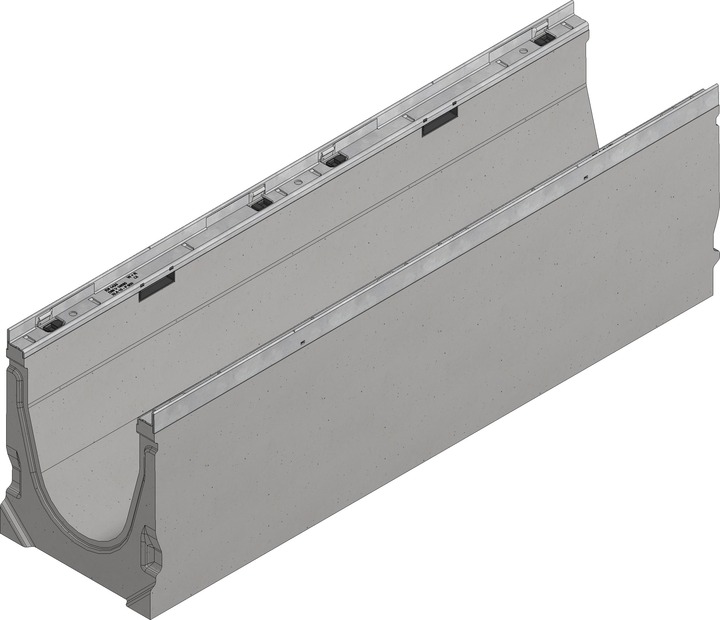

FASERFIX SUPER KS 200

FASERFIX SUPER KS 200
  • the channels are manufactured from a fibre reinforced concrete which makes them extremely strong
  • the SIDE-LOCK grating system gives ease of installation saving time and money
  • there are many different gratings available giving the range enormous flexibility


FASERFIX SUPER KS 200 - Channels
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No. galv. angle housing Item No. st. steel angle housing
Type 01
 1000 260 275 319 79,0 12000 12500
Type 010
 1000 260 320 409 88,0 12042 12542
Type 020
 1000 260 370 509 95,0 12044 12544
Type 0105
 500 260 275 319 39,0 12049 12549
The quality of the stainless steel material is according CNS 1.4301.


FASERFIX SUPER KS 200 - Channels shallow
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No. galv. angle housing Item No. st. steel angle housing
Type 110 F
 1000 260 110 89 34,0 3121 3521
Type 150 F
 1000 260 150 148 60,0 3122 3522
Type 200 F
 1000 260 200 246 67,5 3123 3523
The quality of the stainless steel material is according CNS 1.4301.


FASERFIX SUPER KS 200 - Channels with built-in fall 0,5 %
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No. galv. angle housing Item No. st. steel angle housing
Type 1
 1000 260 275 - 280 324 79,0 12001 12501
Type 2
 1000 260 280 - 285 334 82,0 12002 12502
Type 3
 1000 260 285 - 290 344 84,0 12003 12503
Type 4
 1000 260 290 - 295 354 84,0 12004 12504
Type 5
 1000 260 295 - 300 364 84,0 12005 12505
Type 6
 1000 260 300 - 305 374 85,0 12006 12506
Type 7
 1000 260 305 - 310 384 85,0 12007 12507
Type 8
 1000 260 310 - 315 394 87,0 12008 12508
Type 9
 1000 260 315 - 320 404 86,0 12009 12509
Type 10
 1000 260 320 - 325 414 88,0 12010 12510

The quality of the stainless steel material is according CNS 1.4301.





Gratings

FASERFIX SUPER KS 200 - Gratings, class C 250
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
Ductile iron grating SW 20, black
 500 249 20 823 5,6 12064
Ductile iron grating, SW 20, KTL
 500 249 20 823 5,8 12264
Mesh grating MW 30/10, galvanised
 1000 249 20 1500 10,8 12075
Mesh grating MW 30/10, galvanised
 500 249 20 1500 5,5 12076
Mesh grating MW 30/10, stainless steel
 1000 249 20 1500 11,0 12575
Mesh grating MW 30/10, stainless steel
 500 249 20 1500 5,8 12576
Mesh grating MW 30/30, galvanised
 1000 249 20 1681 9,2 12073
Mesh grating MW 30/30, galvanised
 500 249 20 1681 4,6 12074
The quality of the stainless steel material is according CNS 1.4301.


FASERFIX SUPER KS 200 - Gratings, class D 400*
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
Ductile iron grating SW 20, black
 500 249 20 823 6,9 12063
Ductile iron grating, SW 20, KTL
 500 249 20 823 7,6 12263
* Not for use across the carriageway of highways or motorways in moving traffic.


FASERFIX SUPER KS 200 - Gratings, class E 600
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
GUGI-Ductile mesh grating MW 20/30, black
 500 249 20 886 9,6 12068
GUGI-Ductile iron mesh grating, MW 20x30, KTL
 500 249 20 886 9,7 12268
Mesh grating MW 11/30, galvanised
 1000 249 20 1309 28,4 12071
Mesh grating MW 11/30, galvanised
 500 249 20 1309 14,6 12072
Mesh grating MW 11/30, stainless steel
 1000 249 20 1309 29,7 12571
Mesh grating MW 11/30, stainless steel
 500 249 20 1309 14,9 12572
Solid ductile iron grating, black
 500 249 20 - 8,3 12362
The quality of the stainless steel material is according CNS 1.4301.


FASERFIX SUPER KS 200 - Gratings, class F 900
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
Ductile iron grating SW 20, black
 500 249 20 823 10,4 12061
Ductile iron grating, SW 20, KTL (minimum order quantity: 400 pieces, delivery time approx. 4 weeks)
 500 249 20 823 9,2 12261



Accessories

FASERFIX SUPER KS 200 - Accessories
  Length mm Width mm Height mm Weight kg Item No. Galvanised Item No. Stainless steel
Trash box with galvanised bucket
 500 260 570 76,0 12052 12552
Trash box, 2-pieces, with galvanised mud bucket
 500 260 875 177,0 12054 -
Foul air trap DN 150
 - - - 2,0 960 -
PVC-Connection DN 200
 - - - 0,8 907 -
End cap closed, Type 01
 - 260 275 1,1 12081 12581
End cap closed, Type 010
 - 260 320 1,2 12082 12582
End cap closed, Type 020
 - 260 370 1,5 12083 12583
End cap, closed, Type 110 F
 - 260 110 0,4 3181 3681
End cap, closed, Type 150 F
 - 260 150 0,6 3182 3682
End cap, closed, Type 200 F
 - 260 200 0,8 3183 3683
End cap with horizontal UPVC-outlet, DN 150, galvanised, Type 010
 - 260 320 1,5 12087 12587
End cap with horizontal UPVC-outlet, DN 150, galvanised, Type 020
 - 260 370 1,7 12088 12588
Cutting to length of NW 200
 - - - 0,1 992 -
Mitre cuts NW 200 (price per cut, two cuts necessary)
 - - - 0,1 997 -
Drilling of connecting holes DN 200
 - - - 0,1 974 -
Inserting of PVC union connectors DN 200*
 - - - 0,1 984 -
Sealing material Masterflex 700 FR Gun Grade, cartridge 450 ml**
 - - - 1,0 19000 -
Primer Masterflex 700 A SP, capacity 1000 ml
 - - - 1,2 20000 -
Primer Masterflex 700 FE (steel), capacity 1000 ml
 - - - 1,1 19950 -
Toolkit for sealing material Masterflex 700 FR Gun Grade
 - - - 3,1 10025 -
Fixing-system EP, empty pipe in the channel bottom, (2 pieces per metre)
 - - - 0,1 703 -
Steelbars for fixing system EP (2 pieces per metre)
 - - - 0,1 704 -

* We can additionally insert SML- or PE-HD outlets on appointment
** Consumption for channel type 020: approx. 105 ml per joint.
The quality of the stainless steel material is according CNS 1.4301.
