FASERFIX SUPER 500
FASERFIX®SUPER
- the channels are manufactured from a fibre reinforced concrete which makes them extremely strong
- the SIDE-LOCK grating system gives ease of installation saving time and money
- there are many different gratings available giving the range enormous flexibility
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Weight kg | Item No. | |
|

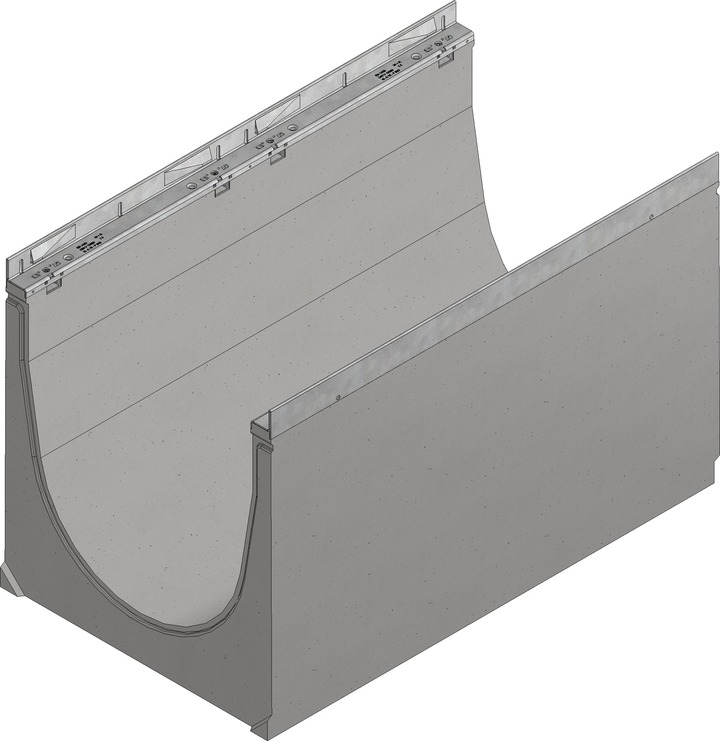

Type 01
|
1000 | 590 | 630 | 2141 | 303,0 | 4121 |
Gratings
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
Ductile iron grating SW 20, black
|
500 | 577 | 40 | 2061 | 45,0 | 4182 |
|
Solid ductile iron grating, black
|
500 | 577 | 40 | - | 42,0 | 4462 |
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
Ductile iron grating, SW 20, black
|
500 | 577 | 40 | 2061 | 46,5 | 4181 |
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
Trash box element with galvanised mud bucket for type 01, 1.0 m
|
1000 | 590 | 1180 | 826,0 | 4130 |
|
End cap closed, galvanised, Type 01
|
- | 590 | 630 | 6,8 | 4096 |
|
End cap with horizontal UOVC-outlet DN 200, galvanised, Type 01
|
- | 590 | 630 | 8,0 | 4095 |
|
Cutting to length of NW 500
|
- | - | - | 0,1 | 989 |
|
Mitre cuts NW 500 (price per cut, two cuts necessary)
|
- | - | - | 0,1 | 959 |
|
Drilling of connecting holes DN 200
|
- | - | - | 0,1 | 974 |
|
Inserting of PVC union connectors DN 200*
|
- | - | - | 0,1 | 984 |
|
Sealing material Masterflex 700 FR Gun Grade, cartridge 450 ml**
|
- | - | - | 1,0 | 19000 |
|
Primer Masterflex 700 A SP, capacity 1000 ml
|
- | - | - | 1,2 | 20000 |
|
Primer Masterflex 700 FE (steel), capacity 1000 ml
|
- | - | - | 1,1 | 19950 |
|
Toolkit for sealing material Masterflex 700 FR Gun Grade
|
- | - | - | 3,1 | 10025 |
|
Fixing-system EP, empty pipe in the channel bottom, (2 pieces per metre)
|
- | - | - | 0,1 | 703 |
|
Steelbars for fixing system EP (2 pieces per metre)
|
- | - | - | 0,1 | 704 |
* We can additionally insert SML- or PE-HD outlets on appointment
** Consumption for channel type 01H: approx. 178 ml per joint.
