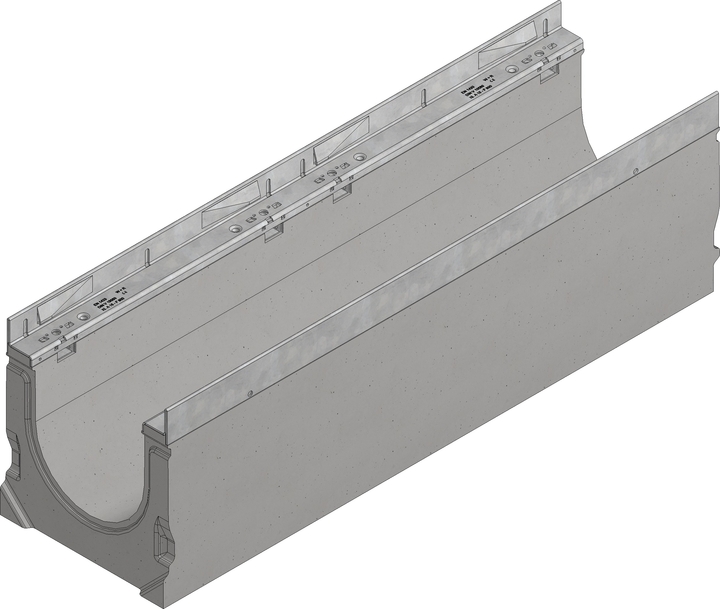

FASERFIX SUPER 200
FASERFIX®SUPER
- the channels are manufactured from a fibre reinforced concrete which makes them extremely strong
- the SIDE-LOCK grating system gives ease of installation saving time and money
- there are many different gratings available giving the range enormous flexibility
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Weight kg | Item No. | |
|
Type 01
|
1000 | 290 | 305 | 362 | 99,0 | 3000 |
|
Type 010
|
1000 | 290 | 350 | 447 | 114,0 | 3042 |
|
Type 020
|
1000 | 290 | 400 | 552 | 125,0 | 3044 |
|
Type 0105
|
500 | 290 | 305 | 362 | 49,0 | 3049 |
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Weight kg | Item No. | |
|
Type 01 E (no stock, minimum order quantity 200 m)
|
1000 | 290 | 305 | 386 | 104,5 | 3105 |
|
Type 010 E (no stock, minimum order quantity 200 m)
|
1000 | 290 | 350 | 473 | 113,5 | 3106 |
|
Type 020 E (no stock, minimum order quantity 200 m)
|
1000 | 290 | 400 | 568 | 124,5 | 3107 |
Gratings
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
GUGI-Ductile iron mesh grating MW 20/30, black
|
500 | 279 | 40 | 818 | 13,8 | 3068 |
|
GUGI-Ductile iron mesh grating, MW 20/30, KTL (minimum order quantity: 400 pieces, delivery time approx. 4 weeks)
|
500 | 279 | 40 | 818 | 13,8 | 3868 |
|
Solid ductile iron grating, black
|
500 | 279 | 40 | - | 13,4 | 3262 |
|
Solid ductile iron grating, KTL (minimum order quantity: 400 pieces, delivery time approx. 4 weeks)
|
500 | 279 | 40 | - | 13,6 | 3962 |
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
Ductile iron grating SW 20, black
|
500 | 279 | 40 | 833 | 13,6 | 3061 |
|
Ductile iron grating SW 20, KTL (minimum order quantity: 400 pieces, delivery time approx. 4 weeks)
|
500 | 279 | 40 | 833 | 13,7 | 3861 |
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
Trash box with galvanised bucket
|
500 | 290 | 582 | 92,0 | 3052 |
|
Trash box, 2-pieces with galvanised bucket
|
500 | 290 | 900 | 190,5 | 3054 |
|
Foul air trap DN 150
|
- | - | - | 2,0 | 960 |
|
PVC - connection DN 150
|
- | - | - | 0,5 | 906 |
|
End cap closed, galvanised, Type 01
|
- | 290 | 305 | 1,4 | 3081 |
|
End cap closed, galvanised, Type 010
|
- | 290 | 350 | 1,7 | 3082 |
|
End cap closed, galvanised, Type 020
|
- | 290 | 400 | 1,9 | 3083 |
|
End cap with horizontal UPVC-outlet DN 150, galvanised, Type 01
|
- | 290 | 305 | 1,5 | 3091 |
|
End cap with horizontal UPVC-outlet DN 150, galvanised, Type 020
|
- | 290 | 400 | 1,8 | 3093 |
|
Cutting to length of NW 200
|
- | - | - | 0,1 | 992 |
|
Mitre cuts NW 200 (price per cut, two cuts necessary)
|
- | - | - | 0,1 | 997 |
|
Drilling of connecting holes DN 200
|
- | - | - | 0,1 | 974 |
|
Inserting of PVC union connectors DN 200*
|
- | - | - | 0,1 | 984 |
|
Sealing material Masterflex 700 FR Gun Grade, cartridge 450 ml**
|
- | - | - | 1,0 | 19000 |
|
Primer Masterflex 700 A SP, capacity 1000 ml
|
- | - | - | 1,2 | 20000 |
|
Primer Masterflex 700 FE (steel), capacity 1000 ml
|
- | - | - | 1,1 | 19950 |
|
Toolkit for sealing material Masterflex 700 FR Gun Grade
|
- | - | - | 3,1 | 10025 |
|
Fixing-system EP, empty pipe in the channel bottom, (2 pieces per metre)
|
- | - | - | 0,1 | 703 |
|
Steelbars for fixing system EP (2 pieces per metre)
|
- | - | - | 0,1 | 704 |
