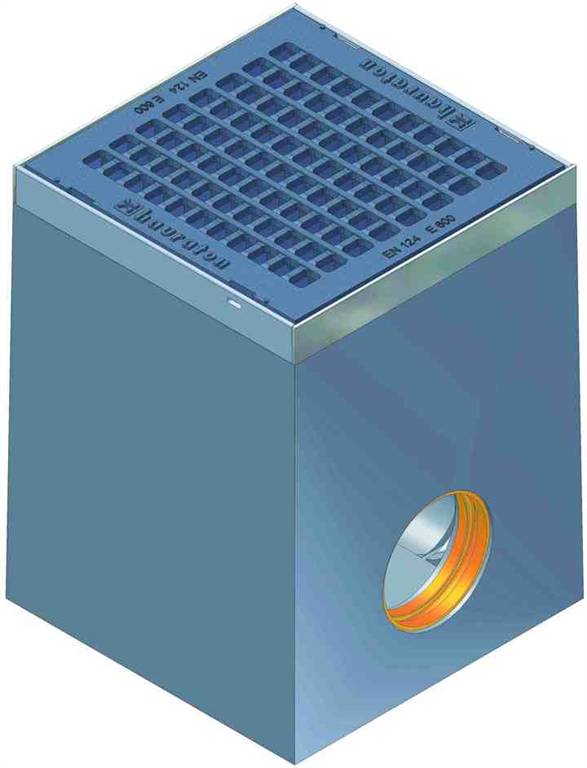

FASERFIX POINT SUPER 30/30
FASERFIX POINT
- has a protective steel frame which protects against corrosion
- the GUGI ductile iron grating gives it a high drainge capacity
- the range is comlemented by an integrated KG sleeve, a foul air trap and a mud bucket
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
with GUGI-Ductile iron mesh grating MW 20/30, black
|
300 | 300 | 400 | 52,0 | 4400 |
|
with GUGI-Guctile iron mesh grating MW 20/30, galvanised
|
300 | 300 | 400 | 44,1 | 4420 |
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
with GUGI-Ductile iron mesh grating MW 20/30, black
|
300 | 300 | 400 | 52,0 | 4400 |
|
with GUGI-Guctile iron mesh grating MW 20/30, galvanised
|
300 | 300 | 400 | 44,1 | 4420 |
Point drainage tested according to EN 124.
For FASERFIX POINT the installation advices as for FASERFIX SUPER are analogous valid.
The gratings are secured with the boltless locking system SIDE-LOCK.
