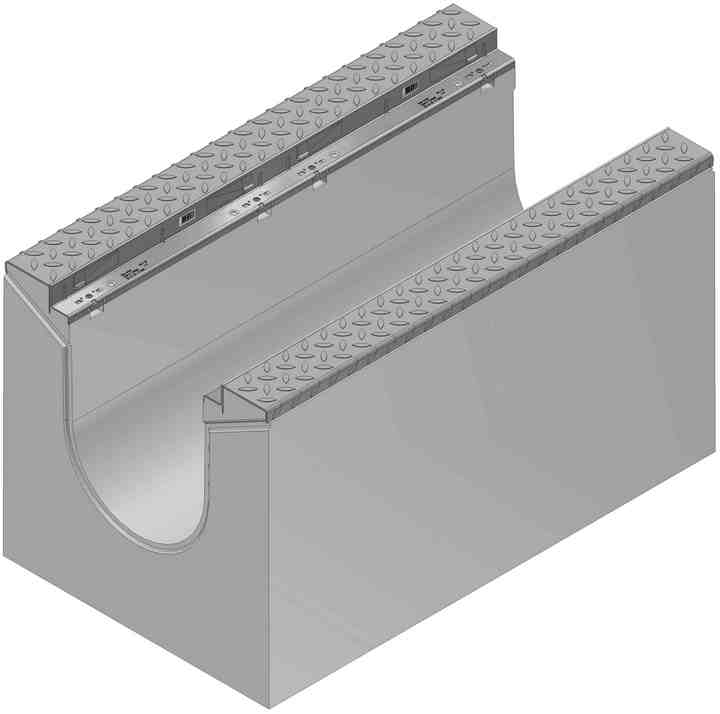

FASERFIX BIG SL 300

FASERFIX BIG SL 300

ASERFIX BIG SL


  • bespoke channels with very high lateral strength
  • these can be used on the heaviest of applications including lorry parks and airports
  • length of channel can vary giving a flexibility and making it quick and efficient to install



FASERFIX BIG SL 300 - Channels
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No.
Type 010
 1000 592 575 947 519,0 4942



Gratings

FASERFIX BIG SL 300 - Gratings, class E 600
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
GUGI-Ductile iron mesh gratlng MW 20/30, black
 500 377 40 1172 21,8 4068

FASERFIX BIG SL 300 - Gratings, class F 900
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
Ductile iron grating SW 20, black
 500 377 40 1334 23,5 4061



Accessories

FASERFIX BIG SL 300 - Accessories
  Length mm Width mm Height mm Weight kg Item No.
Trash box element with KG-pipe DN 200 and galvanised mud bucket
 1000 592 1126 1095,0 4950
Foul air trap DN 150
 - - - 2,0 960
End cap closed, galvanised, type 020
 - 390 630 3,7 4083
End cap with horizontal UPVC-outlet DN 200, galvanised, type 020
 - 390 630 4,5 4088
Cutting to length
 - - - 0,1 891
Mitre cuts (price per cut, two cuts necessary)
 - - - 0,1 892
Drilling of connection holes
 - - - 0,1 893
Inserting of PVC union connectors
 - - - 0,1 894
Sealing material Masterflex 700 FR Gun Grade, cartridge 450 ml**
 - - - 1,0 19000
Primer Masterflex 700 A SP, capacity 1000 ml
 - - - 1,2 20000
Primer Masterflex 700 FE (steel), capacity 1000 ml
 - - - 1,1 19950
Toolkit for sealing material Masterflex 700 FR Gun Grade
 - - - 3,1 10025

** Consumption of sealing material: approx. 155 ml per joint.
