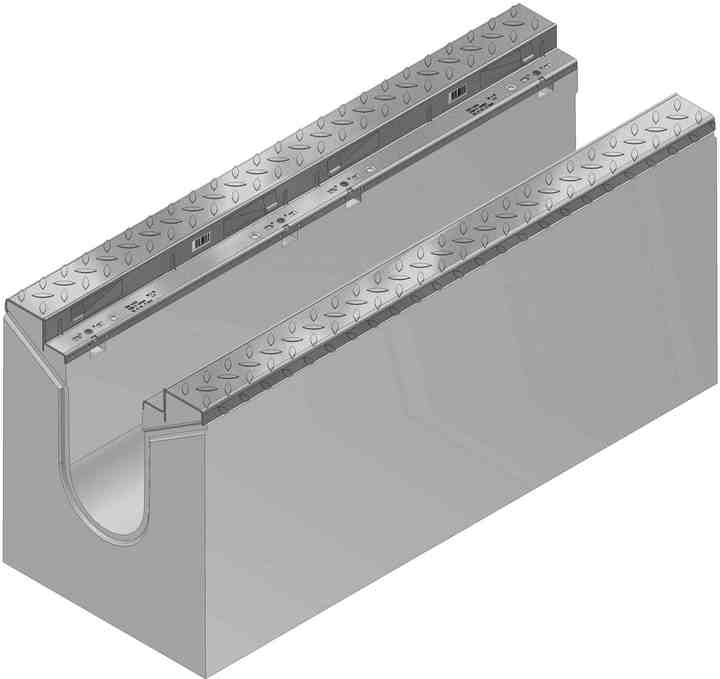

FASERFIX BIG SL 150

FASERFIX BIG SL 150

ASERFIX BIG SL


  • bespoke channels with very high lateral strength
  • these can be used on the heaviest of applications including lorry parks and airports
  • length of channel can vary giving a flexibility and making it quick and efficient to install



FASERFIX BIG SL 150 - Channels
  Length mm Width mm Height mm Drainage cross-sect. cm² Weight kg Item No.
Type 020
 1000 392 447 383 312,0 2944



Gratings

FASERFIX BIG SL 150 - Gratings, class E 600
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
GUGI-Ductile iron mesh grating, MW 20/30, black
 500 227 40 628 11,5 2068

FASERFIX BIG SL 150 - Gratings, class F 900
  Length mm Width mm Height mm Intake cross-sect. cm²/m Weight kg Item No.
Ductile iron grating SW 20, black
 500 227 40 710 9,8 2061



Accessories

FASERFIX BIG SL 150 - Accessories
  Length mm Width mm Height mm Weight kg Item No.
Trash box element with KG-pipe DN 150 and galvanised mud bucket
 1000 392 1000 692,0 2950
Foul air trap DN 150
 - - - 2,0 960
End cap closed, galvanised, Type 020
 - 240 369 1,4 2083
End cap with horizontal UPVC-outlet DN 150, galvanised, Type 020
 - 240 369 1,7 2093
Cutting to length
 - - - 0,1 891
Mitre cuts (price per cut, two cuts necessary)
 - - - 0,1 892
Drilling of connection holes
 - - - 0,1 893
Inserting of PVC union connectors
 - - - 0,1 894
Sealing material Masterflex 700 FR Gun Grade, cartridge 450 ml**
 - - - 1,0 19000
Primer Masterflex 700 A SP, capacity 1000 ml
 - - - 1,2 20000
Primer Masterflex 700 FE (steel), capacity 1000 ml
 - - - 1,1 19950
Toolkit for sealing material Masterflex 700 FR Gun Grade
 - - - 3,1 10025

** Consumption of sealing material: approx. 112 ml per joint.
