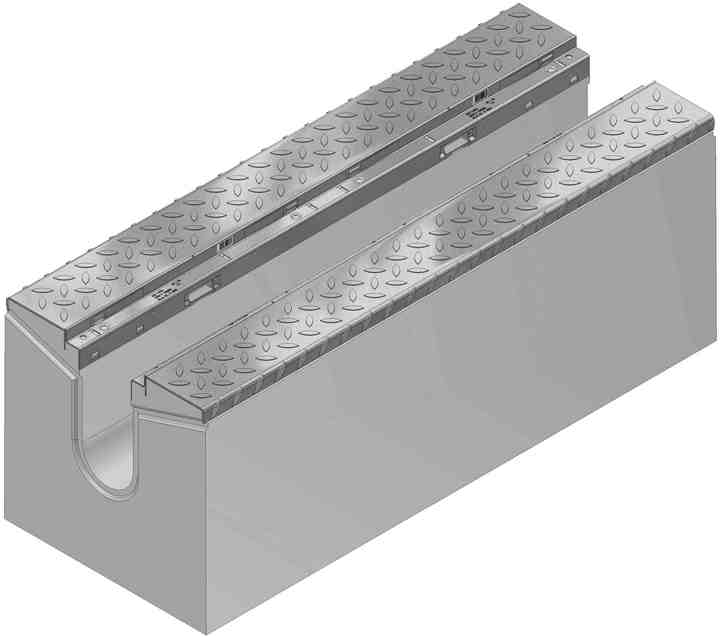

FASERFIX BIG SL 100
FASERFIX BIG SL
- bespoke channels with very high lateral strength
- these can be used on the heaviest of applications including lorry parks and airports
- length of channel can vary giving a flexibility and making it quick and efficient to install
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Weight kg | Item No. | |
|
Type 020
|
1000 | 392 | 384 | 206 | 276,0 | 1844 |
Gratings
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
GUGI-Ductile iron mesh grating MW 20/30, black
|
500 | 149 | 20 | 426 | 4,0 | 8079 |
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
Ductile iron grating SW 14, black
|
500 | 149 | 20 | 454 | 4,5 | 8061 |
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. Galvanised | Item No. Stainless steel | |
|
Trash box element with KG-pipe DN 150 and galvanised mud bucket
|
1000 | 392 | 930 | 656,0 | 1850 | - |
|
Foul air trap DN 100, outside
|
- | - | - | 0,4 | 961 | - |
|
End cap closed, Type 020
|
- | 160 | 274 | 0,6 | 8083 | 8183 |
|
End cap with horizontal UPVC-outlet DN 100, Type 020
|
- | 160 | 274 | 0,7 | 8089 | 8187 |
|
Cutting to length
|
- | - | - | 0,1 | 891 | - |
|
Mitre cuts (price per cut, two cuts necessary)
|
- | - | - | 0,1 | 892 | - |
|
Drilling of connection holes
|
- | - | - | 0,1 | 893 | - |
|
Inserting of PVC union connectors
|
- | - | - | 0,1 | 894 | - |
|
Sealing material Masterflex 700 FR Gun Grade, cartridge 450 ml**
|
- | - | - | 1,0 | 19000 | - |
|
Primer Masterflex 700 A SP, capacity 1000 ml
|
- | - | - | 1,2 | 20000 | - |
|
Primer Masterflex 700 FE (steel), capacity 1000 ml
|
- | - | - | 1,1 | 19950 | - |
|
Toolkit for sealing material Masterflex 700 FR Gun Grade
|
- | - | - | 3,1 | 10025 | - |
** Consumption of sealing material: approx. 99 ml per joint.
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
