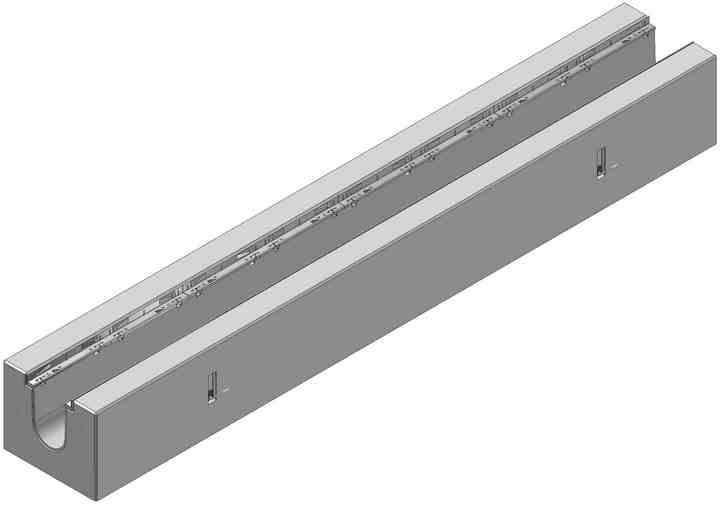

FASERFIX BIG BL 200
FASERFIX®BIG BL
- bespoke channels with very high lateral strength
- these can be used on the heaviest of applications including lorry parks and airports
- length of channel can vary giving a flexibility and making it quick and efficient to install
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Weight kg | Item No. | |
|
Type 020
|
4000 | 600 | 490 | 552 | 2148,0 | 3744 |
Gratings
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
GUGI-Ductile iron mesh grating MW 20/30, black
|
500 | 279 | 40 | 818 | 13,8 | 3068 |
| Length mm | Width mm | Height mm | Intake cross-sect. cm²/m | Weight kg | Item No. | |
|
Ductile iron grating SW 20, black
|
500 | 279 | 40 | 833 | 13,6 | 3061 |
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
Trash box element with KG-muffle DN 200 and galvanised bucket
|
1000 | 600 | 1054 | 680,0 | 3755 |
|
Foul air trap DN 150
|
- | - | - | 2,0 | 960 |
|
Foul air trap DN 100, outside
|
- | - | - | 0,4 | 961 |
|
UPVC-outlet DN 100
|
- | - | - | 0,2 | 903 |
|
PVC - connection DN 150
|
- | - | - | 0,5 | 906 |
|
End cap closed, galvanised, Type 020
|
- | 290 | 400 | 1,9 | 3083 |
|
End cap with horizontal UPVC-outlet DN 150, galvanised, Type 020
|
- | 290 | 400 | 1,8 | 3093 |
|
Cutting to length
|
- | - | - | 0,1 | 891 |
|
Mitre cuts (price per cut, two cuts necessary)
|
- | - | - | 0,1 | 892 |
|
Drilling of connection holes
|
- | - | - | 0,1 | 893 |
|
Inserting of PVC union connectors
|
- | - | - | 0,1 | 894 |
|
Sealing material Masterflex 700 FR Gun Grade, cartridge 450 ml**
|
- | - | - | 1,0 | 19000 |
|
Primer Masterflex 700 A SP, capacity 1000 ml
|
- | - | - | 1,2 | 20000 |
|
Primer Masterflex 700 FE (steel), capacity 1000 ml
|
- | - | - | 1,1 | 19950 |
|
Toolkit for sealing material Masterflex 700 FR Gun Grade
|
- | - | - | 3,1 | 10025 |
|
Transport rod
|
- | - | - | 0,1 | 701 |
** Consumption of sealing material: approx. 125 ml per joint.
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
