Fan-Coil convectors - Forced Convection (with fan)
What are convectors?
Heating convectors are heating bodies intended for installation in interiors (floor, window sill, bases etc.).
How convector works?

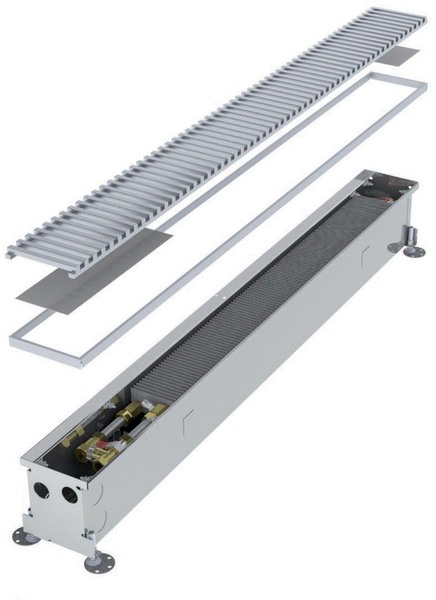

Convectors have a finned tube heat exchanger located in a stainless-steel trough. Convectors are supplied in the following designs: with fan (forced convection) or without fan (natural convection).
- We are able to produce curved or angle-connected convectors thanks to modern production technology.
-
We use energy-saving DC 12V fan motors with extremely low consumption of el. energy.
E.g., the average consumption of el. energy is 2 to 3 W per 1m of the MINIB convector length.
COIL – HCM4pipe
- cooling output higher than 2 kW for 2-meter long convector
- directed air is blown far into the space
1 097 W/m
COIL – TO85
- for heating wet interiors
- very low convector (height only 85 mm)
823 W/m
COIL – KT
- the most popular convector with fan
- for heating dry interiors
- high heat output
- also heating when the fan is switched off
1 134 W/m
COIL – KO
- the most popular convector with the fan
- for heating wet interiors
- high heat output
- also heating when the fan is switched off
1 134 W/m
COIL – T50
- lowest height MINIB convector with fan
- construction height only 50 mm
- supplied only with 12.7 mm high Al grille
452 W/m
COIL – T60
- for heating dry interiors
- very low MINIB convector(only 65 mm in the floor)
- COIL – T60 is supplied only with the 16.5 mm high aluminium grille
768 W/m
COIL – T80
- for heating dry interiors
- very low MINIB convector (only 80 mm in the floor)
- supplied with any aluminium or wooden grille
916 W/m
COIL – KT0
- the narrowest available MINIB floor convector, total width only 106 mm
- for heating dry interiors
417 W/m
COIL – KT1
- narrow but powerful convector
- for heating dry interiors
545 W/m
COIL – KT2
- universal convector, which also provides heat with the fan switched off
- high heat output
- it can be connected to air diffuser with an 80 mm diameter
1 134 W/m
COIL – KO2
- universal convector, which also provides heat with the fan switched off
- high heat output
1 134 W/m
COIL – MT
- very powerful MINIB floor convector
- COIL – MT: for heating dry interiors
1 394 W/m
COIL – MO
- very powerful MINIB floor convector
- heating of swimming pools
- implied condensate outlet
1 394 W/m
COIL – HC
- very effective convector for heating and cooling
- single circuit
- air is blown tangentially into the interior
1 104 W/m
COIL – HC4pipe
- heating and cooling of interiors cooling output higher than 1 kW for 2 metre long convector
- directed air is blown far into the space
903 W/m
COIL – HCM
- heating output higher than 6.5 kW and cooling output higher than 2 kW for 2-meter long convector
2 191 W/m
COIL – KT3
- trough identical with the COIL – P; width 243 mm
- dry environment heating
729 W/m
COIL – KT110
- for heating dry interiors
- high heat output
- also heating when the fan is switched off
- KT110 variant with lower demands on construction height.
928 W/m
COIL – KT3 105
- dry environment heating
- KT3 105 is the variant with lower demands on the construction height
1 024 W/m
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
