DRAINFIX CLEAN 400
ILTER SUBSTRATE CHANNEL SYSTEM THAT CAN BE USED IN ALL APLICATIONS BUT ESPECIALLY IN DENSLEY BUILT UP AREAS.

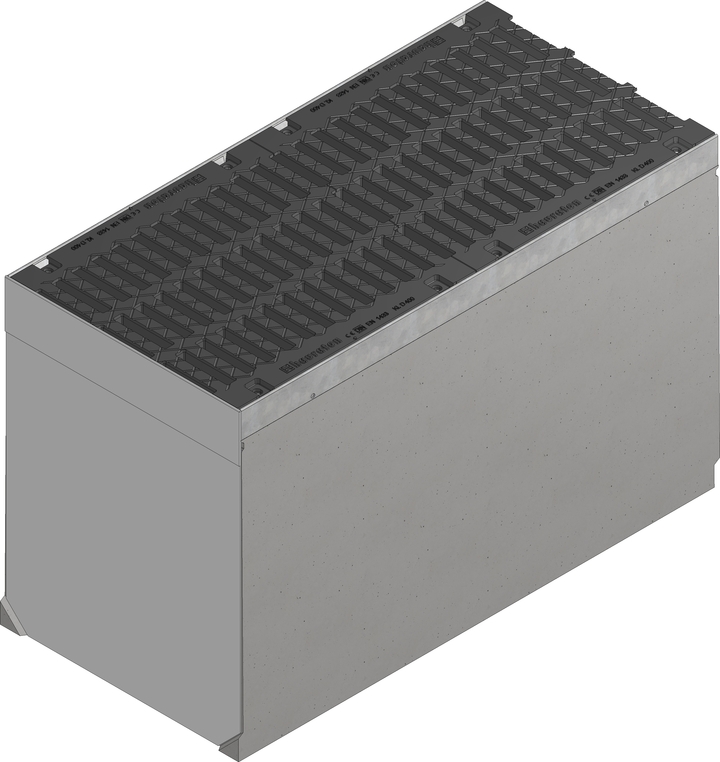

The DRAINFIX CLEAN system is an intelligent solution for the draining, collection and treatment at source of storm water runoffs. The system comprises of heavy duty FASERFIX SUPER channels complete with ductile iron grates; load classes D400 to F900. Each channel contains a carbon rich substrate filter through which the cleansing of the storm water runoff occurs; pollutants such as zinc, copper, lead and fuel hydrocarbons as well as fine particles are trapped within the substrate material. The channels also offer large retention capacities that allow the system to handle high volumes of water.
| Length mm | Width mm | Height mm | Retentions-volumen l | Retentions-querschnitt cm² | Height filling of substratum cm | Substratbedarf l/lfdm. | Weight kg | Item No. | |
|
Type 01 H, starting piece, 1 m
|
1000 | 490 | 630 | 110 | 1145 | 20 | 71 | 319,3 | 97200 |
|
Type 01 H, intermediate piece, 1 m
|
1000 | 490 | 630 | 110 | 1145 | 20 | 71 | 314,4 | 97210 |
|
Type 01 H, end piece, 1 m
|
1000 | 490 | 630 | 110 | 1145 | 20 | 71 | 319,2 | 97220 |
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
End cap closed, stainless steel
|
- | 490 | 630 | 5,1 | 4592 |
|
Separation plate, stainless steel, type 01 H
|
- | 396 | 456 | 2,8 | 97404 |
|
CARBOTEC 60 filter substratum, bagged cargo
|
- | - | - | 30,0 | 97430 |
|
Intersection units, two parts with solid ductile iron grating, black, class E 600
|
510 | 390 | 850 | 207,0 | 4352 |
|
Extension part
|
510 | 390 | 400 | 82,0 | 4054 |
