DACHFIX STANDARD

DACHFIX STANDARD

DACHFIX

  • available in high overall lengths for quick and efficient installation
  • integrated connection system for fitting installation
  • range of  attractive gratings for design



DACHFIX STANDARD - Channel Type 1, galvanised, height adjustable
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm² Weight kg Item No.

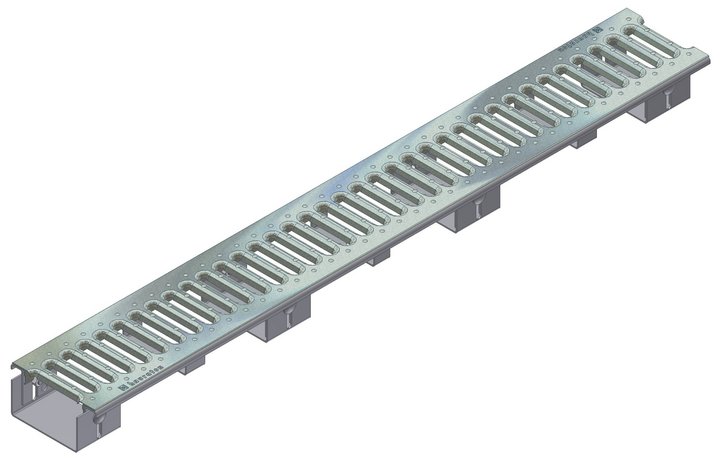

Type 1 DP, with slotted grating SW 9
 1000 139 58 - 90 - 280 4,7 60070
Type 1 DP, with slotted grating SW 9
 500 139 58 - 90 - 280 2,4 60073
Type 1 DP, with mesh grating MW 30/10
 1000 139 58 - 90 - 650 6,6 60080
Type 1 DP, with mesh grating MW 30/10
 500 139 58 - 90 - 650 3,1 60083
Type 1 DP, with perforated grating diam. 6
 1000 139 58 - 90 - 161 5,6 60078



DACHFIX STANDARD - Channel Type 2, galvanised, height adjustable
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm² Weight kg Item No.
Type 2 DP, with slotted grating SW 9
 1000 139 110 - 160 - 280 5,3 60170
Type 2 DP, with mesh grating MW 30/10
 1000 139 110 - 160 - 650 7,2 60180
Type 2 DP, with perforated grating diam. 6
 1000 139 110 - 160 - 161 8,7 60178



DACHFIX STANDARD - Channel Type 3, galvanised, height adjustable
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm² Weight kg Item No.
Type 3 DP, with mesh grating MW 30/10
 1000 252 90 - 130 - 1966 9,2 60280



DACHFIX STANDARD - Channel Type 4, galvanised, height adjustable
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm² Weight kg Item No.
Type 4 DP, with mesh grating MW 30/10
 1000 500 70 - 110 - - 22,0 60380



Accessories

DACHFIX STANDARD - Accessories
  Length mm Width mm Height mm Weight kg Item No. Galvanised Item No. Stainless steel
Perforated side wall, galvanised, for Type 1
 1000 29 50 0,3 60700 -
Perforated side wall, galvanised, for Type 1
 500 29 50 0,2 60706 -
Perforated side wall, galvanised, for Type 2
 1000 27 100 0,4 60721 -
Perforated side wall, galvanised, for Type 3/4
 1000 32 70 0,6 60741 -
Cross-intersection channel
 1000 70 30 0,7 60800 60801

DACHFIX Channels are walkable and wheelchair-accessible.
All DACHFIX STANDARD Channels are also available as special production in stainless steel CNS 1.4301.
