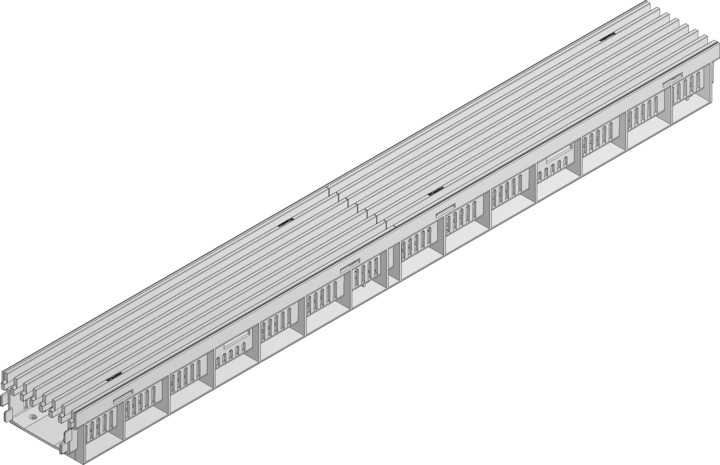

DACHFIX RESIST
DACHFIX
- available in high overall lengths for quick and efficient installation
- integrated connection system for fitting installation
- range of attractive gratings for design
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 0 with longitudinal slot grating, SW 10 mm, made of PE-PP, silver
|
1000 | 115 | 75 | 28 | 637 | 1,6 | 63015 |
|
Type 0 with slotted grating, galvanised
|
1000 | 115 | 75 | 28 | 280 | 2,9 | 63030 |
|
Type 0 with slotted grating, stainless steel
|
1000 | 115 | 75 | 28 | 280 | 3,1 | 63035 |
|
Type 0 with mesh grating made of PE-PP, black
|
1000 | 115 | 75 | 28 | 250 | 1,6 | 63040 |
|
Type 0 with mesh grating made of PE-PP, silver
|
1000 | 115 | 75 | 28 | 511 | 1,6 | 63045 |
|
Type 0 with mesh grating MW 30'/10, galvanised
|
1000 | 115 | 75 | 28 | 828 | 3,3 | 63050 |
|
Type 0 with mesh grating MW 30'/10, stainless steel
|
1000 | 115 | 75 | 28 | 828 | 3,0 | 63055 |
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
End cap closed, silver, for DACHFIX RESIST
|
- | 115 | 75 | 0,1 | 63025 |
|
PE-PP locking handle, silver, for DACHFIX RESIST
|
- | - | - | 0,1 | 63020 |
|
Height adjusting set for DACHFIX RESIST, height 75 mm
|
- | - | - | 0,2 | 63095 |
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
