DACHFIX POINT

DACHFIX POINT

DACHFIX

  • available in high overall lengths for quick and efficient installation
  • integrated connection system for fitting installation
  • range of  attractive gratings for design



DACHFIX POINT - Type 1, not height adjustable 60 mm, 250 x 250 mm
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm² Weight kg Item No.

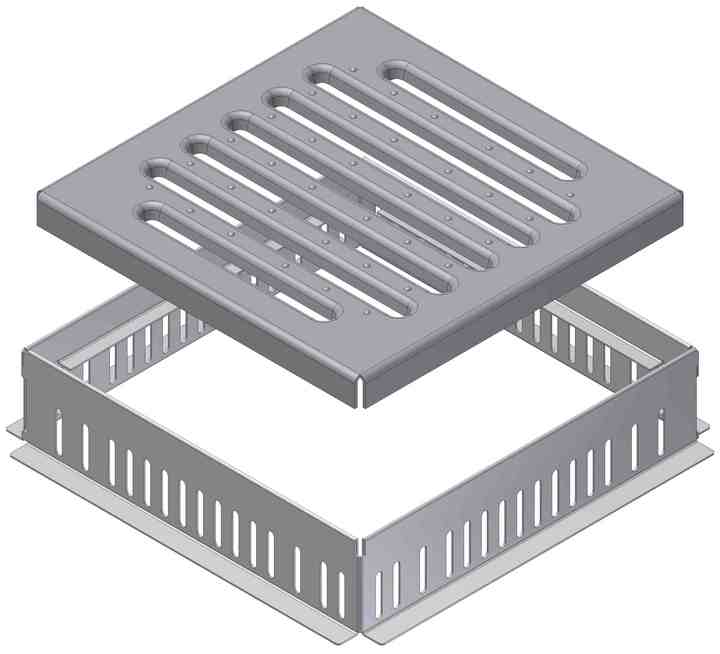

Gully extension Type 1 with slotted grating, galvanised
 250 250 60 - 116 1,7 60620
Gully extension Type 1 with mesh grating, MW 30/10, galvanised
 250 250 60 - 398 1,4 60610
Gully extension Type 1 with slotted grating, stainless steel
 250 250 60 - - 1,7 60625
Gully extension Type 1 with mesh grating MW 30/10, stainless steel
 250 250 60 - - 1,4 60615

DACHFIX POINT Gullys are walkable and wheelchair-accessible.
The quality of the stainless steel material is according CNS 1.4301.



DACHFIX POINT - Type 2, not height adjustable 60 mm, 400 x 400 mm
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm² Weight kg Item No.
Gully extension Type 2 with mesh grating MW 30/10, galvanised
 400 400 60 - 1069 5,7 60640
Gully extension Type 2 with mesh grating MW 30/10, stainless steel
 400 400 60 - - 5,7 60645

DACHFIX POINT Gullys are walkable and wheelchair-accessible.



DACHFIX POINT - Type 1, height adjustable, 250 x 250 mm
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm² Weight kg Item No.
Gully extension Type 1 with slotted grating, galvanised
 250 250 70 - 110 - 116 4,3 60542
Gully extension Type 1 with mesh grating, MW 30/10, galvanised
 250 250 70 - 110 - 398 4,0 60541
Gully extension Type 1 with slotted grating, stainless steel
 250 250 70 - 100 - - 4,3 60547
Gully extension Type 1 with mesh grating, MW 30/10, stainless steel
 250 250 70 - 100 - - 4,0 60546

DACHFIX POINT Gullys are walkable and wheelchair-accessible.
The quality of the stainless steel material is according CNS 1.4301.



DACHFIX POINT - Type 2, height adjustable, 400 x 400 mm
  Length mm Width mm Height mm Drainage cross-sect. cm² Intake cross-sect. cm² Weight kg Item No.
Gully extension Type 2 with mesh grating, MW 30/10, galvanised
 400 400 70 - 100 - 1069 7,2 60591
Gully extension Type 2 with mesh grating, MW 30/10, stainless steel
 400 400 70 - 100 - - 7,2 60596
DACHFIX POINT Gullys are walkable and wheelchair-accessible.
