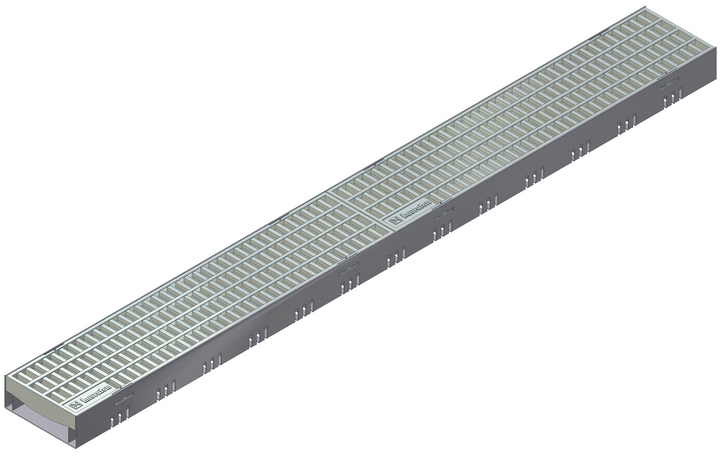

DACHFIX

DACHFIX

available in high overall lengths for quick and efficient installation
integrated connection system for fitting installation
range of attractive gratings for design

DACHFIX - Channel made of galvanised steel with PE-PP grating, not height adjustable 45 mm

	Length mm	Width mm	Height mm	Drainage cross-sect. cm²	Intake cross-sect. cm²	Weight kg	Item No.
Type 0 with mesh grating MW 8/21, silver	1000	115	45	26	511	3,9	61042
Type 0 with mesh grating MW 8/21, silver	500	115	45	26	511	1,5	61044
Type 0 with mesh grating MW 8/21, black	1000	115	45	26	250	2,9	61032
Type 0 with mesh grating MW 8/21, black	500	115	45	26	250	1,5	61034

DACHFIX Channels are walkable and wheelchair-accessible.

DACHFIX - Channel made of galvanised steel with PE-PP grating, not height adjustable 75 mm

	Length mm	Width mm	Height mm	Drainage cross-sect. cm²	Intake cross-sect. cm²	Weight kg	Item No.
Type 0 with mesh grating MW 8/21, silver	1000	115	75	59	511	3,5	61142
Type 0 with mesh grating MW 8/21, silver	500	115	75	59	511	1,8	61144
Type 0 with mesh grating MW 8/21, black	1000	115	75	59	250	3,5	61132
Type 0 with mesh grating MW 8/21, black	500	115	75	59	250	1,8	61134

DACHFIX Channels are walkable and wheelchair-accessible.

DACHFIX - Channel made of stainless steel with PE-PP grating, not height adjustable 45 mm

	Length mm	Width mm	Height mm	Drainage cross-sect. cm²	Intake cross-sect. cm²	Weight kg	Item No.
Type 0 with mesh grating MW 8/21, silver	1000	115	45	26	511	3,0	61242
Type 0 with mesh grating MW 8/21, silver	500	115	45	26	511	1,5	61244
Type 0 with mesh grating MW 8/21, black	1000	115	45	26	250	3,0	61232
Type 0 with mesh grating MW 8/21, black	500	115	45	26	250	1,5	61234

DACHFIX Channels are walkable and wheelchair-accessible.

DACHFIX - Channel made of stainless steel with PE-PP grating, not height adjustable 75 mm

	Length mm	Width mm	Height mm	Drainage cross-sect. cm²	Intake cross-sect. cm²	Weight kg	Item No.
Type 0 with mesh grating MW 8/21, silver	1000	115	75	59	511	3,5	61342
Type 0 with mesh grating MW 8/21, silver	500	115	75	59	511	1,8	61344
Type 0 with mesh grating MW 8/21, black	1000	115	75	59	250	3,5	61332
Type 0 with mesh grating MW 8/21, black	500	115	75	59	250	1,8	61334

DACHFIX Channels are walkable and wheelchair-accessible.

DACHFIX - Channel with slotted grating, not height adjustable 45 mm

	Length mm	Width mm	Height mm	Drainage cross-sect. cm²	Intake cross-sect. cm²	Weight kg	Item No.
Type 0 with sletted grating SW 9, galvanised	1000	115	45	26	256	3,4	61012
Type 0 with slotted grating SW 9, galvanised	500	115	45	26	256	1,7	61014
Type 0 with slotted grating SW 9, stainless steel	1000	115	45	26	256	3,3	61212
Type 0 with slotted grating SW 9, stainless steel	500	115	45	26	256	1,7	61214

DACHFIX Channels are walkable and wheelchair-accessible.

DACHFIX - Channel with slotted grating, not height adjustable 75 mm

	Length mm	Width mm	Height mm	Drainage cross-sect. cm²	Intake cross-sect. cm²	Weight kg	Item No.
Type 0 with slotted grating SW 9, galvanised	1000	115	75	59	256	3,8	61112
Type 0 with slotted grating SW 9, galvanised	500	115	75	59	256	2,0	61114
Type 0 with slotted grating SW 9, stainless steel	1000	115	75	59	256	3,8	61312
Type 0 with slotted grating SW , stainless steel	500	115	75	59	256	2,0	61314

DACHFIX Channels are walkable and wheelchair-accessible.

DACHFIX - Channel with mesh grating, not height adjustable 45 mm

	Length mm	Width mm	Height mm	Drainage cross-sect. cm²	Intake cross-sect. cm²	Weight kg	Item No.
Type 0 with mesh grating MW 30/10, galvanised	1000	115	45	26	828	4,6	61022
Type 0 with mesh grating MW 30/10, galvanised	500	115	45	26	801	2,3	61024
Type 0 with mesh grating MW 30/10, stainless steel	1000	115	45	26	828	4,7	61222
Type 0 with mesh grating MW 30/10, stainless steel	500	115	45	26	801	2,4	61224

DACHFIX Channels are walkable and wheelchair-accessible.

DACHFIX - Channel with mesh grating, not height adjustable 75 mm

	Length mm	Width mm	Height mm	Drainage cross-sect. cm²	Intake cross-sect. cm²	Weight kg	Item No.
Type 0 with mesh grating MW 30/10, galvanised	1000	115	75	59	828	5,1	61122
Type 0 with mesh grating MW 30/10, galvanised	500	115	75	59	801	2,6	61124
Type 0 with mesh grating MW 30/10, stainless steel	1000	115	75	59	828	5,2	61322
Type 0 with mesh grating MW 30/10, stainless steel	500	115	75	59	801	2,6	61324

DACHFIX Channels are walkable and wheelchair-accessible.

DACHFIX - Channel made of PE-PP, not height adjustable 60 mm

	Length mm	Width mm	Height mm	Drainage cross-sect. cm²	Intake cross-sect. cm²	Weight kg	Item No.
Type 0/60 PE with slotted grating SW 9, galvanised	1000	147	60	-	280	3,0	61412
Type 0/60 PE with slotted grating SW 9, stainless steel	1000	147	60	-	280	3,0	61413
Type 0/60 PE with mesh grating MW 30/10, galvanised	1000	147	60	-	650	4,2	61422
Type 0/60 PE with mesh grating MW 30/10, stainless steel	1000	147	60	-	650	4,2	61423

DACHFIX Channels are walkable and wheelchair-accessible.

Accessories

DACHFIX - Accessories

	Length mm	Width mm	Height mm	Weight kg	Item No. Galvanised	Item No. Stainless steel
End cap	-	115	45	0,1	61009	61209
End cap	-	115	75	0,1	61109	61309
End cap closed, made of PE-PP, for type 60	-	147	60	0,1	40284	-
Cross-intersection channel	1000	70	30	0,7	60800	60801
Adjusting set for height adjustment* of DACHFIX Type 0, height 75 mm (3 pieces per metre required)	-	-	-	0,2	61150	61350

* Height adjustable from 82 - 112 mm
The quality of the stainless steel material is according CNS 1.4301.
