Chain Blocks

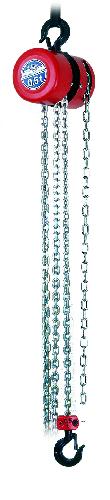

Z100 pulley block
Use:
As a classic manually controlled lifting device for lifting and lowering loads.
- particularly suitable for use wherever the lifting device is not used intensively
- for occasional use
- in areas without a power supply
- as a service hoist for installation and maintenance work in technological facilities of all types
- can also be used in environments with a risk of explosion (NEXP symbol)
Properties:
- simple, light construction, easily moved
- simply operated
- minimum maintenance demands
The Z100 hoist is manufactured as standard with a basic lift height of 3m. Lift heights from 3m to 12m are available.
|
Type |
Lifting |
Number |
Load chain |
Hand chain |
Operating |
Lifting * |
Main dimensions (mm) |
Weight |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
a |
d |
D |
e |
L |
||||||||
|
Z 100 |
0,25 | 1 |
Ř 3,1 x 9,3 |
Ř 3 x 14,3 | 270 | 2 | 120 | 30 | 80 | 18,5 | 255 | 3,8 |
|
Z 100 |
0,5 |
1 |
Ř 5 x 15 |
Ř 4 x 20 |
300 |
1,10 |
165 |
30 |
115 |
18,5 |
250 |
10 |
|
Z 100-1 |
1 |
1 |
Ř 7 x 21 |
Ř 4 x 20 |
350 |
0,70 |
180 |
36 |
136 |
23,5 |
330 |
12,5 |
|
Z 100 |
1,6 |
1 |
Ř 9 x 27 |
Ř 4 x 20 |
320 |
0,36 |
220 |
43 |
198 |
29,5 |
410 |
25 |
|
Z 100-1 |
3,2 |
1 |
Ř 11 x 31 |
Ř 4 x 20 |
400 |
0,29 |
254 |
50 |
220 |
35,5 |
510 |
36,5 |
|
Z 100-2 |
5 |
2 |
Ř 11 x 31 |
Ř 4 x 20 |
400 |
0,145 |
254 |
56 |
220 |
39,5 |
655 |
57 |
|
Z 100 |
7,5 |
2 |
Ř 11 x 31 |
Ř 4 x 20 |
480 |
0,15 |
254 |
56 |
220 |
43 |
875 |
70 |
|
10 |
3 |
Ř 11 x 31 |
Ř 4 x 20 |
400 |
0,10 |
254 |
63 |
200 |
47 |
1000 |
85 |
|
|
* calculated on presumption of unwinding 30 m of hand chain per minute. |
||||||||||||
Příklady pouľití:
