Cast Pulley
Cast pulley
Detail description:

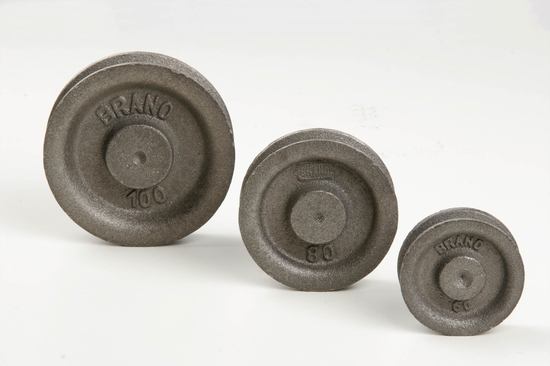

Cast pulley is semi-finished product used for manufacturing of pulleys with various use.
For example: training machines in gymnasiums, suspension cables, guidance of ropes and other applications.
The customer drills the central hole itself, according to its particular need. Pulley has pre-casted central dot.
|
Size - Ř pulley (mm) |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
120 |
|---|---|---|---|---|---|---|---|---|---|
|
Dimension A (mm) |
30 |
40 |
50 |
60 |
70 |
80 |
90 |
100 |
120 |
|
Dimension B (mm) |
20 | 30 | 36 | 45 | 55 | 61 | 71 | 81 | 98 |
|
Dimension C (mm) |
11 | 12 | 17 | 18 | 19 | 23 | 24 | 26 | 28 |
|
Dimension R (mm) |
2,5 | 3 | 4 | 4 | 4 | 5 | 5 | 6 | 8 |
|
Weight (kg) |
0,05 |
0,07 |
0,1 |
0,17 |
0,23 |
0,34 |
0,5 |
0,7 |
0,85 |
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
