Bricklayer Pullies

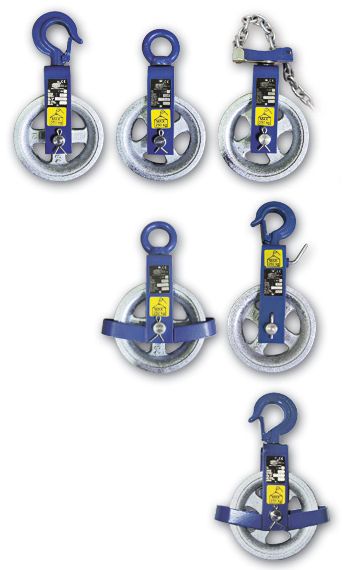

Z500A, B, C, D, E, F Bricklayer’s pulley
Use:
Serves as portable tool for installation and bricklaying work when lifting and towing loads by manual force by pulling on a hemp or polyamide cable.
Properties:
- simple construction in five versions for various types of suspension
- minimum maintenance demands
The Z 500L rope with a hook is used with pulleys of all versions. It is not part of the delivery and must be ordered individually.
Z500L rope has a 11mm, basic rope length is 20 m. Alternatively, you can use other polyamide or hemp rope up to Ř 16mm.
|
Type |
Lifting |
a |
d |
D |
e min |
h |
L |
Weight of pulley |
|---|---|---|---|---|---|---|---|---|
|
A - with hook, without cover |
500 |
61 |
30 |
125 |
20 |
- |
240 |
1,7 |
|
B - with hook, without cover |
61 |
28 |
125 |
- |
- |
233 |
1,8 |
|
|
C - with hook, with cover |
61 |
30 |
125 |
20 |
165 |
240 |
1,9 |
|
|
D - with hook, with cover |
61 |
28 |
125 |
- |
165 |
233 |
2 |
|
|
E - with chain, without cover |
61 |
- |
125 |
- |
- |
- |
2,3 |
|
|
F - with hook, without cover |
61 |
30 |
125 |
20 |
- |
256 |
1,7 |
