AQUAFIX SEPARATORS SERIES k

AQUAFIX SEPARATORS SERIES k

AQUAFIX

  • highest cleaning performances
  • modern materials for all demands
  • up to NS 250 l/sec.

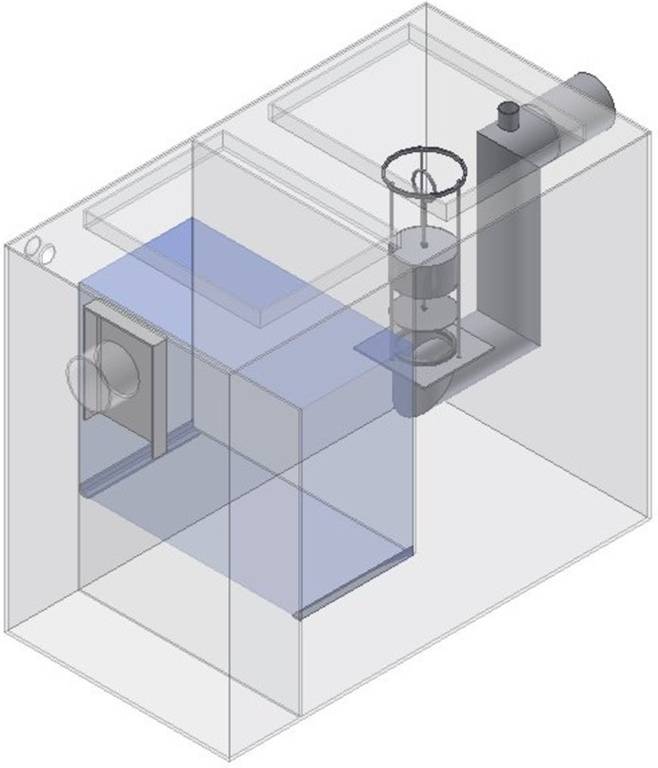

AQUAFIX - Kk Coalescence separator
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
Kk 01,5
 1000 600 800 100 600 580 265,0 87501
Kk 03
 1000 600 1000 100 800 780 339,0 87503
Kk 04
 1000 800 1000 100 800 780 419,0 87504
Kk 06
 1200 800 1200 150 940 920 554,0 87506
Kk 08
 1500 800 1200 150 940 920 664,0 87508
Kk 10
 1500 800 1200 150 940 920 664,0 87510
Kk 15
 1500 1000 1500 200 1200 1180 1010,0 87515
Kk 20
 1800 1000 1500 200 1200 1180 1029,0 87520



AQUAFIX - SKk Coalescence separator with sludge trap
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SKk 01,5/0150
 1200 600 800 100 600 560 291,0 87601
SKk 03/0300
 1400 600 1000 100 800 750 363,0 87603
SKk 04/0400
 1400 800 1000 100 800 750 427,0 87604
SKk 06/0600
 1800 800 1200 150 950 900 623,0 87606
SKk 08/0800
 2100 800 1200 150 950 900 699,0 87608
SKk 10/1000
 2300 800 1300 150 1050 1000 809,0 87610
SKk 15/1500
 2300 1100 1600 200 1300 1250 1275,0 87615
SKk 20/2000
 2900 1100 1600 200 1300 1250 1371,0 87620



AQUAFIX - SKBPk Coalescence separator with sludge trap and bypass
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SKBPk 03/0300
 1200 800 1200 150 980 760 498,0 87803
SKBPk 04/0400
 1500 800 1200 200 930 710 563,0 87804
SKBPk 06/0600
 1900 1000 1300 200 1030 810 804,0 87806
SKBPk 08/0800
 2300 1100 1200 300 830 610 916,0 87808
SKBPk 10/1000
 2300 1100 1400 300 1030 810 1073,0 87810
SKBPk 15/1500
 2500 1200 1800 400 1330 1110 1560,0 87815
SKBPk 20/2000
 2900 1200 1800 400 1330 1110 1657,0 87820



AQUAFIX - SKmPk Coalescence separator with sludge trap and pump chamber
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SKmPk 01,5/0150
 2200 600 800 100 600 570 396,0 87701
SKmPk 03/0300
 1800 800 1000 100 800 770 492,0 87703
SKmPk 04/0400
 2400 800 1000 100 800 770 574,0 87704
SKmPk 06/0600
 2200 1100 1200 150 950 920 950,0 87706
SKmPk 08/0800
 2700 1200 1100 150 850 820 1111,0 87708
SKmPk 10/1000
 2700 1200 1300 150 1050 1020 1220,0 87710
SKmPk 15/1500
 3100 1200 1600 200 1300 1270 1633,0 87715
SKmPk 20/2000
 3100 1400 1600 200 1300 1270 1766,0 87720



AQUAFIX - Sk Sludge trap
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
Sk 0100
 800 500 600 100 350 320 94,0 87000
Sk 0150
 800 600 600 100 350 320 104,0 87001
Sk 0200
 800 600 700 100 450 420 117,0 87002



AQUAFIX - Grease separator with sludge trap - freestanding overground installation
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
GB 1
 760 415 560 50 325 290 27,0 77050
SFe 01/0100
 950 450 642 70 500 470 70,0 77100
SFe 02/0200
 1650 640 1000 100 770 700 225,0 77200



AQUAFIX - Fk Grease separator
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
Fk 01
 1000 500 1000 100 800 780 171,0 87101
Fk 02
 1200 800 1000 100 800 780 242,0 87102
Fk 04
 1500 800 1200 100 1000 980 324,0 87104
Fk 07
 1800 1000 1200 150 950 930 416,0 87107
Fk 10
 2500 1000 1400 150 1150 1130 597,0 87110
Fk 15
 3200 1200 1400 200 1100 1080 609,0 87115
Fk 20
 3200 1600 1500 200 1200 1180 953,0 87120
Fk 25
 4000 1600 1500 200 1200 1180 1133,0 87125



AQUAFIX - SFk Grease separator with sludge trap
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SFk 01/0100
 1000 500 1000 100 800 730 194,0 87201
SFk 02/0200
 1200 800 1000 100 800 730 277,0 87202
SFk 04/0400
 1500 1000 1200 100 1000 930 418,0 87204
SFk 07/0700
 2400 1000 1400 150 1150 1080 644,0 87207
SFk 10/1000
 2500 1400 1400 150 1150 1080 793,0 87210
SFk 15/1500
 3200 1600 1500 200 1100 1030 1063,0 87215
SFk 20/2000
 4000 1800 1500 200 1200 1130 1325,0 87220
SFk 25/2500
 5000 1800 1500 200 1200 1130 1567,0 87225



AQUAFIX - SFmEk Grease separator with sludge trap and disposal pipe
  Length mm Width mm Height mm DN in-/outLet mm HE H inlet mm HA H outlet mm Weight kg Item No.
SFmEk 01/0100
 1000 500 1000 100 800 730 196,0 87301
SFmEk 02/0200
 1200 800 1000 100 800 730 279,0 87302
SFmEk 04/0400
 1500 1000 1200 100 1000 930 420,0 87304
SFmEk 07/0700
 2400 1000 1400 150 1150 1080 646,0 87307
SFmEk 10/1000
 2500 1400 1400 150 1150 1080 795,0 87310
SFmEk 20/2000
 4000 1800 1500 200 1200 1130 1330,0 87320
SFmEk 25/2500
 5000 1800 1500 200 1200 1130 1572,0 87325
