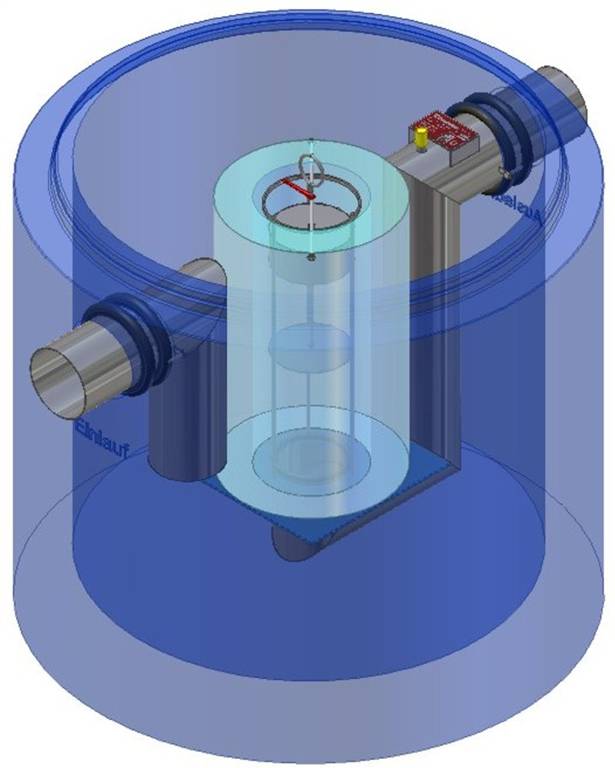

AQUAFIX®SEPARATORS FROM CONCRETE SERIES P
AQUAFIX
- highest cleaning performances
- modern materials for all demands
- up to NS 250 l/sec.
Length mm | Width mm | Height mm | DN in-/outLet mm | HE H inlet mm | HA H outlet mm | Weight kg | Item No. | |
K 03 P
|
1300 | 1300 | 1385 | 100 | 900 | 875 | 2160,0 | 103030P |
K 06 P
|
1300 | 1300 | 1385 | 100 | 900 | 875 | 2160,0 | 103060P |
K 10 P
|
1300 | 1300 | 1385 | 150 | 845 | 820 | 2160,0 | 103100P |
K 15 P
|
1500 | 1500 | 1585 | 200 | 1000 | 975 | 3360,0 | 103150P |
K 20 P
|
1800 | 1800 | 1585 | 200 | 1000 | 975 | 4470,0 | 103200P |
K 30 P
|
2300 | 2300 | 1835 | 250 | 1200 | 1175 | 7360,0 | 103300P |
K 40 P
|
2740 | 2740 | 2335 | 250 | 1675 | 1650 | 10200,0 | 103400P |
K 50 P
|
2740 | 2740 | 2535 | 250 | 1900 | 1875 | 10300,0 | 103500P |
Length mm | Width mm | Height mm | DN in-/outLet mm | HE H inlet mm | HA H outlet mm | Weight kg | Item No. | |
K2BP 10 P
|
1500 | 1500 | 2550 | 400 | 1650 | 1575 | 4890,0 | 174010P |
K2BP 15 P
|
1800 | 1800 | 2550 | 400 | 1695 | 1575 | 6350,0 | 174015P |
K2BP 20 P
|
2300 | 2300 | 2100 | 500 | 1430 | 1275 | 8670,0 | 174020P |
K2BP 20 P
|
2300 | 2300 | 2400 | 500 | 1430 | 1275 | 8670,0 | 174020P |
K2BP 30 P
|
2300 | 2300 | 2800 | 600 | 1675 | 1575 | 9680,0 | 174030P |
K2BP 40 P
|
2740 | 2740 | 2800 | 600 | 1600 | 1425 | 10300,0 | 174040P |
K2BP 60 P
|
2740 | 2740 | 2950 | 800 | 1750 | 1575 | 11000,0 | 174060P |
K2BP 80 P
|
3300 | 3300 | 2950 | 800 | 1675 | 1475 | 16870,0 | 174080P |
K2BP 90 P
|
3300 | 3300 | 3300 | 1000 | 1850 | 1650 | 18170,0 | 174090P |
Length mm | Width mm | Height mm | DN in-/outLet mm | HE H inlet mm | HA H outlet mm | Weight kg | Item No. | |
SK2BP 10/1000 P
|
2300 | 2300 | 2550 | 400 | 1625 | 1550 | 9050,0 | 175010P |
SK2BP 10/1000 P
|
2300 | 2300 | 2550 | 400 | 1625 | 1550 | 9050,0 | 175010P |
SK2BP 15/1500 P
|
2300 | 2300 | 2760 | 400 | 1870 | 1750 | 9580,0 | 175015P |
SK2BP 15/1500 P
|
2300 | 2300 | 2760 | 400 | 1870 | 1750 | 9580,0 | 175015P |
SK2BP 20/2000 P
|
2740 | 2740 | 2900 | 500 | 1905 | 1750 | 11300,0 | 175020P |
Length mm | Width mm | Height mm | DN in-/outLet mm | HE H inlet mm | HA H outlet mm | Weight kg | Item No. | |
S 00650/03 P
|
1300 | 1300 | 1770 | 100 | 1275 | 1225 | 2720,0 | 101043P |
S 01300/03 P
|
1500 | 1500 | 1845 | 100 | 1350 | 1300 | 3610,0 | 101064P |
S 02500/10 P
|
1800 | 1800 | 2140 | 150 | 1620 | 1570 | 5270,0 | 101105P |
S 03500/10 P
|
2300 | 2300 | 1720 | 150 | 1200 | 1150 | 6810,0 | 101106P |
S 05000/10 P
|
2300 | 2300 | 2220 | 150 | 1700 | 1650 | 7910,0 | 101107P |
S 07500/10 P
|
2740 | 2740 | 2390 | 150 | 1870 | 1820 | 10450,0 | 101108P |
S 10000/10 P
|
2740 | 2740 | 3020 | 150 | 2500 | 2450 | 11480,0 | 101109P |
S 02500/20 P
|
1800 | 1800 | 2140 | 200 | 1570 | 1520 | 5270,0 | 101205P |
S 05000/20 P
|
2300 | 2300 | 2220 | 200 | 1650 | 1600 | 7910,0 | 101207P |
S 08000/20 P
|
2740 | 2740 | 2470 | 200 | 1900 | 1850 | 10100,0 | 101208P |
S 10000/20 P
|
2740 | 2740 | 2970 | 200 | 2400 | 2350 | 11400,0 | 101209P |
S 05000/30 P
|
2300 | 2300 | 2405 | 250 | 1790 | 1740 | 8680,0 | 101307P |
S 05000/30 P
|
2300 | 2300 | 2220 | 250 | 1600 | 1550 | 7910,0 | 101307P |
S 07500/30 P
|
2740 | 2740 | 2390 | 250 | 1770 | 1720 | 10450,0 | 101308P |
S 10000/30 P
|
2740 | 2740 | 3020 | 250 | 2400 | 2350 | 11480,0 | 101309P |
Length mm | Width mm | Height mm | DN in-/outLet mm | HE H inlet mm | HA H outlet mm | Weight kg | Item No. | |
Sf 0800/04 P
|
1300 | 1300 | 1770 | 150 | 1250 | 1200 | 2720,0 | 107043P |
Sf 0800/04 P
|
1300 | 1300 | 1770 | 150 | 1250 | 1200 | 2720,0 | 107043P |
Sf 0700/07 P
|
1300 | 1300 | 1770 | 150 | 1250 | 1200 | 2720,0 | 107073P |
Sf 0700/07 P
|
1300 | 1300 | 1770 | 150 | 1250 | 1200 | 2720,0 | 107073P |
Sf 1400/07 P
|
1500 | 1500 | 1845 | 150 | 1325 | 1275 | 3610,0 | 107074P |
Sf 1400/07 P
|
1500 | 1500 | 1845 | 150 | 1325 | 1275 | 3610,0 | 107074P |
Sf 2500/10 P
|
1800 | 1800 | 2140 | 150 | 1620 | 1570 | 5270,0 | 107104P |
Sf 2500/10 P
|
1800 | 1800 | 2140 | 150 | 1620 | 1570 | 5270,0 | 107104P |
Sf 2500/20 P
|
1800 | 1800 | 2140 | 200 | 1570 | 1520 | 5270,0 | 107205P |
Sf 2500/20 P
|
1800 | 1800 | 2140 | 200 | 1570 | 1520 | 5270,0 | 107205P |
Are you interested in this product? Contact us using form below or contact us directly on e-mail info@mrs.cz or call +420 545 175 844 or +420 602 707 001.
