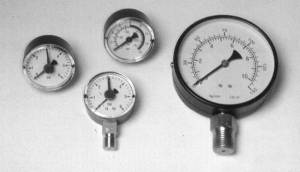

Thermometers and pressure gauges
|
diameter |
63, 80, 100 |
|
connection |
from the bottom (code1A3...) or from the rear(other codes) |
|
accuracy |
class 2 (DIN 16203) |
|
case |
brass |
|
 |
Not all types can be supplied from stock, please contact us for info.
|
|
Type |
Connection |
D |
d1 |
B2 |
G |
L1 |
a |
b3 |
F |
|
63 |
rear |
63 |
12 |
14,5 |
G1/2 |
40 |
- |
- |
- |
|
80 |
rear |
80 |
12 |
13,5 |
G1/2 |
40 |
- |
- |
- |
|
80 |
rear |
80 |
12 |
13,5 |
G1/2 |
100 |
- |
- |
- |
|
100 |
rear |
100 |
12 |
15,5 |
G1/2 |
40 |
- |
- |
- |
|
100 |
rear |
100 |
12 |
15,5 |
G1/2 |
100 |
- |
- |
- |
|
80 |
bottom |
80 |
8 |
- |
G1/2 |
45 |
10 |
33 |
47,3 |
|
80 |
bottom |
80 |
8 |
- |
G1/2 |
100 |
10 |
33 |
47,3 |
|
|
bottom connection |
|
rear connection |
 |
|
 |
|
Direct mount pressure gauges
|
diameter: |
40, 50, 63, 100 mm |
|
connection: |
from the bottom (code 3A1...) or from the rear (code 3A2...) |
|
case: |
UNI ISO 288/1, brass |
Not all types can be supplied from stock, please contact us for info.
|
 |
|
Type |
Connection |
A |
B |
C |
D |
E |
range |
|
40 |
bottom |
41,5 |
23,4 |
9,2 |
- |
20,3 |
4, 6, 10, 16, 25 bar
|
|
40 |
rear |
41,5 |
27,0 |
20,1 |
14 |
20,3 |
4, 6, 10, 16, 25 bar |
|
50 |
bottom |
48,7 |
27,0 |
9,7 |
- |
24,6 |
4, 6, 10, 16, 25 bar |
|
50 |
rear |
48,7 |
27,0 |
24,1 |
14 |
23,3 |
4, 6, 10, 16, 25 bar |
|
63 |
bottom |
61,6 |
28,0 |
10,0 |
- |
24,6 |
1, 1.6, 2.5, 4, 6, 10 bar |
|
63 |
rear |
61,6 |
28,0 |
30,3 |
14 |
23,3 |
4, 6, 10, 25 bar |
|
100 |
bottom |
100 |
36,2 |
13,1 |
- |
33,0 |
1, 1.6, 2.5, 4, 6,
10, 16, 25, 40, 60 bar |
Bottom connection Rear connection
|
TYPE: |
110, 113, 130, 133, 150, 170, 171, 180 |
|
Temperature range: |
-40 to +40°C |
0 to +120°C |
-20 to +80°C |
0 to +200°C |
+50 to +350°C |
Sensing element
(diameter x length, material) |
8,5 x 30,
Cu |
8,5 x 30,
Cu |
6,5 x 30,
Cu |
3 x 115,
STAINLESS STEEL |
3 x 80,
STAINLESS STEEL |
|
Capillary coating |
white |
gray |
--- |
|
Capillary |
copper |
stainless steel |
|
Key to determining the type: |
|
|
TYPE |
Execution |
|
110 |
round, Ø 57,5 |
|
113 |
round, Ø 42 |
|
130 |
square, 48 x 48 |
|
133 |
square, 42 x 42 |
|
150 |
rectangular 31 x 64 |
|
170 |
rectangular 14,5 x 64,5 |
|
171 |
rectangular 14,5 x 68,5 |
|
180 |
rectangular 14,5 x 64,5 |
|
181 |
rectangular 14,5 x 70 |
|
RANGE |
Temperature |
|
0 |
-40 až +40 °C |
|
1 |
0 až +120 °C |
|
3 |
0 až +200 °C |
|
4 |
+50 až +350 °C |
|
DIAL |
Digit design |
|
0 |
DIN |
|
5 |
DIGITAL |
|
|
COLOR VERZION |
Description |
Background |
|
0 |
white
|
black
|
|
1 |
black
|
white
|
|
2 |
yellow
|
black
|
|
5 |
blue/red
|
white
|
|
CAPILLARY |
Length (mm) |
|
1 |
500 |
|
2 |
1000 |
|
3 |
1500 |
|
4 |
2000 |
|
TG manometers and thermo-manometers
|
|
MANOMETERS |
THERMO-MANOMETERS |
|
TYPE: |
320, 323, 340, 343
(before 310, 313, 330, 333) |
520, 540
(before 510, 530) |
|
Photo and dimensions |
down |
down |
|
Range |
0 to 4bar, 0 to 6bar |
0 to 120°C / 0 to 4bar, 0 to 6bar |
|
Capillary |
COPPER |
|
Capillary coating |
THERMOPLASTIC PVC R3, GREY |
|
|
Key to determining the type: |
|
|
manometers
|
|
TYP |
Provedení |
|
320 (310) |
round, diameter 57,5 mm |
|
323 (313) |
round, diameter 42 mm |
|
340 (330) |
square, 48 x 48 mm |
|
343 (333) |
square, 42 x 42 mm |
|
thermo-manometers
|
|
520 (510) |
round, diameter 57,5 mm |
|
540 (530) |
rectangular, 42 x 78 mm |
|
RANGE |
Pressure, pressure/temperature
|
|
7 |
0 to 4 bar,
0 to 4 bar/0 to 120°C
|
|
8 |
0 to 6bar,
0 to 6 bar/0 to 120°C
|
|
DIAL |
Digit design |
|
0 |
DIN |
|
5 |
DIGITAL |
Note: Type 540 does not have a digital dial
|
|
FRAME |
Surface |
Cross-section |
|
0 |
black |
|
|
1 |
chrome
|
|
|
5 |
black
|
|
|
6 |
white |
|
|
7 |
gray
|
|
Note: Frames 0, 1 only for types 320, 520.
|
CAPILLARY |
Length (mm) |
|
1 |
500 |
|
2 |
1000 |
|
3 |
1500 |
|
4 |
2000 |
|
COLOR VERSION |
Description |
Background |
|
0 |
white |
black |
|
1 |
black |
white |
|
2 |
yellow |
black |
|
5 |
black |
gray |
Note: 5 only for thermo-manometer type 540 |
|
|
Type |
Photo |
Dimensions [mm] |
320
(310) |
 |
Dimensions:
Ø57,5
Dimensions
of socket:
Ø52,5
|
|
323
(313) |
 |
Dimensions:
Ø42
Dimensions
of socket:
Ø37
|
|
340
(330) |
 |
Dimensions:
48 x 48
Dimensions
of socket:
45,5 x 45,5
|
|
343
(333) |
 |
Dimensions:
42 x 42
Dimension
of socket:
Ø37,5
|
|
|
Type |
Photo |
Dimensions [mm] |
520
(510) |
 |
Dimensions:
Ø57,5
Dimension
of socket:
Ø52,5
|
|
540
(530) |
 |
Dimensions:
42 x 78
Dimensions
of socket:
37,5 x 73,5
|
