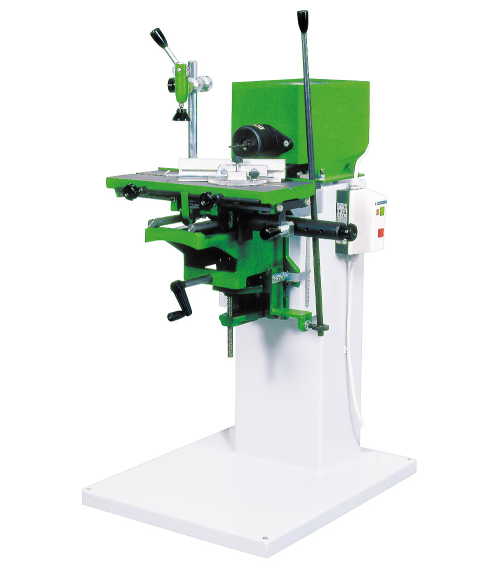

Slot mortising machine

Slot mortising machine

VDA 316

Mortiser
Precision ground cast iron table with slot
One-lever operating system
Overload protection
Woodpresser
CE standards
Options:
Four size rotor group with fixed position 16, 22, 32, 38 mm
Table slot and guide with protractor

VDA 316 - Technical data

Slot mortising machine
Motor power 2,2 (3,0) kW
Motor speeds 2 860/min.
Max. tool diameter Ø 16 mm
Max. height of mortising above the table 125 mm
Max. longitudinal travel of the table 220 mm
Max. cross travel of the table 135 mm
Machine dimensions
Length 740 mm
Width 560 mm
Height 1 320 mm
Table size 460 x 190 mm
Gross weight 95 kg
Nett weight 90 kg
Other parameters
Voltage / frequency 3x400V (3x230V | 1x230V) / 50(60)Hz
Line safeguarding 16 A
Noise level without technology LAeq 85,0 dB(A)
Noise level with technology LAeq 87,0 dB(A)
Acustic achievement +
Acustic achievement (with technology) +





VDA 320

Machine execution and its advantages:

  • precise fabrication of machine body, machine designed mainly for professional use
  • cast iron table - precise guide of workpiece
  • eccentric woodpresser with thread - firm fixing of woodpiece, easy adjustment
  • solid cast iron table - precise table positioning
  • table tilting and turning - universal machine use
  • double-lever execution - easy operation
  • scale with stop for mortising depth - quick adjustment
  • scale with stop for mortising length - quick adjustment
  • speed change of spindle head, 3 pulley positions - ideal cutting speed for different material

VDA 320 - Technical data

Slot mortising machine
Motor power 2,2 (3,0) kW
Motor speeds 2 860/min.
Spindle speeds 1 500; 2 500; 3 300/min
Max. tool diameter Ø 16 mm
Max. mortising diameter Ø 30 mm
Bit height above the ground 880 mm
Table turning ± 40°
Table tilting ± 30°
Max.length of mortise hole 230 + Ø vrtáku mm
Max. height of bit above the table 175 mm
Machine dimensions
Length 940 mm
Width 900 mm
Height 1 150 mm
Table size 600 x 290 mm
Gross weight 220 kg
Nett weight 215 kg
Other parameters
Voltage / frequency 3x400 V / 50(60) Hz
Line safeguarding 16 A
Noise level with technology LAeq 87,0 dB(A)
Acustic achievement (with technology) 97,0 dB(A)
