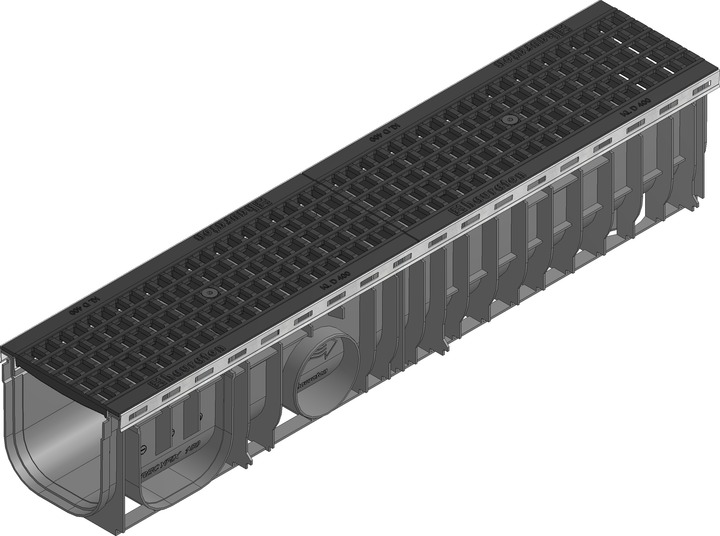

RECYFIX PLUS 150
RECYFIX PLUS
- highly stable
- the steel edge means it is easier to use on many applications including tarmac and also adds to the aesthetics
- an extensive range of channels and gratings up to 300 mm wide gives flexibility in design
| Length mm | Width mm | Height mm | Drainage cross-sect. cm² | Intake cross-sect. cm² | Weight kg | Item No. | |
|
Type 01 with GUGI-ductile iron mesh grating, MW 20/30, black
|
1000 | 210 | 193 | 225 | 745 | 14,0 | 41080 |
Accessories
| Length mm | Width mm | Height mm | Weight kg | Item No. | |
|
Trash box with galvanised bucket with GUGI-ductile iron mesh grating, MW 20/30, black, cl. D 400
|
500 | 210 | 495 | 20,2 | 41083 |
|
Foul air trap, vertical, DN 100
|
- | - | - | 0,6 | 40295 |
|
End cap combined made of PE-PP with outlet DN 70/100, Type 01
|
- | 210 | 202 | 0,1 | 40191 |
|
Drilling of connecting holes DN 150
|
- | - | - | 0,1 | 973 |
|
Cutting to length of NW 150
|
- | - | - | 0,1 | 991 |
|
Sealing material Sikaflex TS Fast, 600 ml, tubular bag, black
|
- | - | - | 0,6 | 6890 |
|
Tubular pistol for Sikaflex TS Fast
|
- | - | - | 1,3 | 6891 |
