NPM 250 hydraulic shear platform
Platform description
- Simple solution of architectural barriers caused by staircases, balconies, terraces etc.
- Simple operation, easy maintenance, and reliable operation.
-
Various extra modifications and accessories can be performed on request, e.g.:
- modification of dimensions of the transport plate
- Complete "turnkey" supply including design documents, assembly, revision, and commissioning.
- All our equipment is provided with guarantee and post-guarantee service.
- The platforms can be installed in new as well as existing buildings and in an external as well as an internal environment.
- The equipment is provided with a TÜV CZ s.r.o. certificate and meets all current standards and regulations, including the requirements of Decree No. 398/2009 Coll.
Technical parameters
| Version | with railing on the platform as well as the landing |
| Load bearing capacity of the platform | Maximum 250 kg |
| Lift speed | 0,06 m/s |
| Working voltage | 3 × 400V/50Hz |
| Power input | 800 W |
| Maximum lift height | 1 700 mm |
| Maximum dimensions of the transport plate | 1 400 × 1 100 mm |

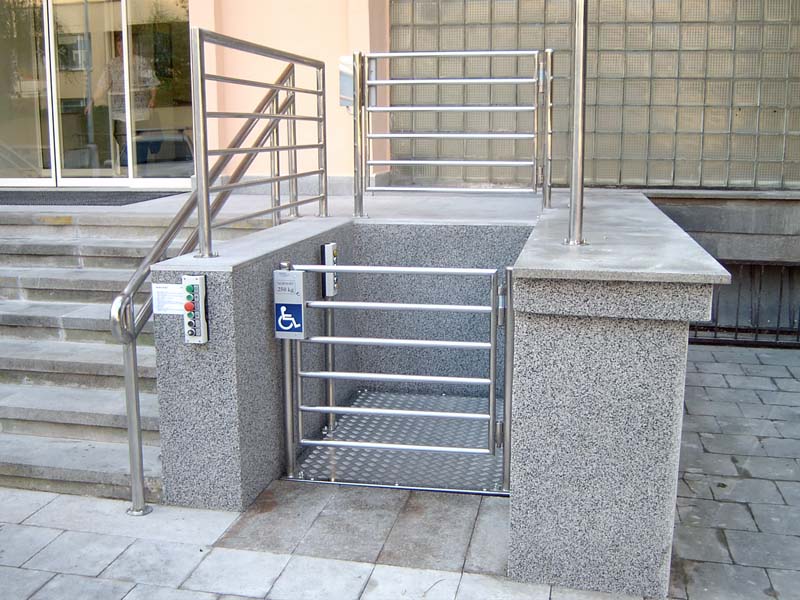

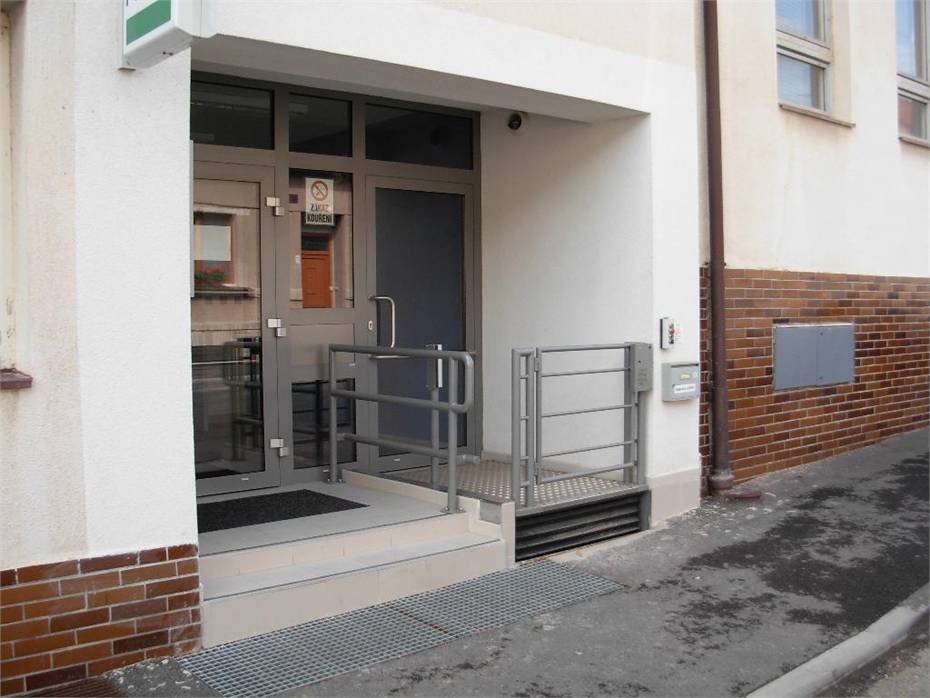

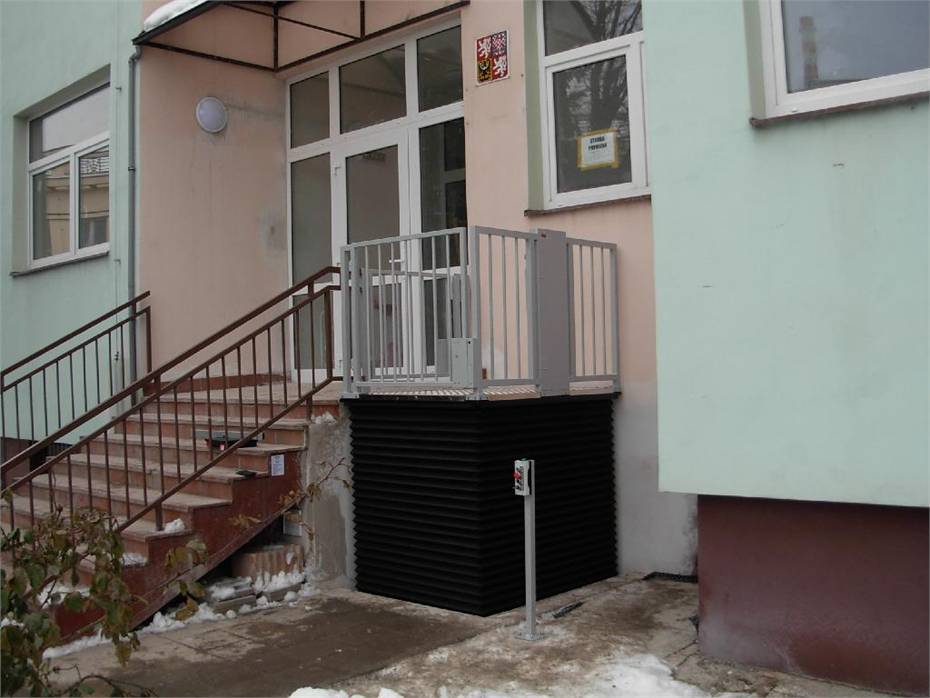

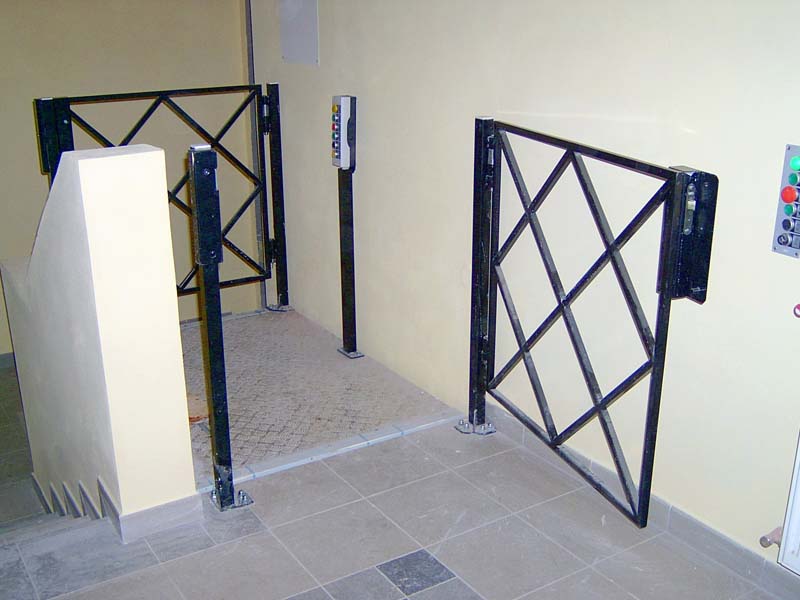

Product gallery
